9.14.2 In Case of Electro-Hydraulic Single-Rotor Lifting Mechanism Design
Pos: 32.116 /BA/Bedienu ng /Schwader/Sc hwaden/Kreiselbetriebe b ei Ausführung elektr ische Einkreiselaush ebung_Bild @ 362\mod_1 439565090707_78.doc x @ 2670552 @ @ 1
2
1
I
II
III
SW700096

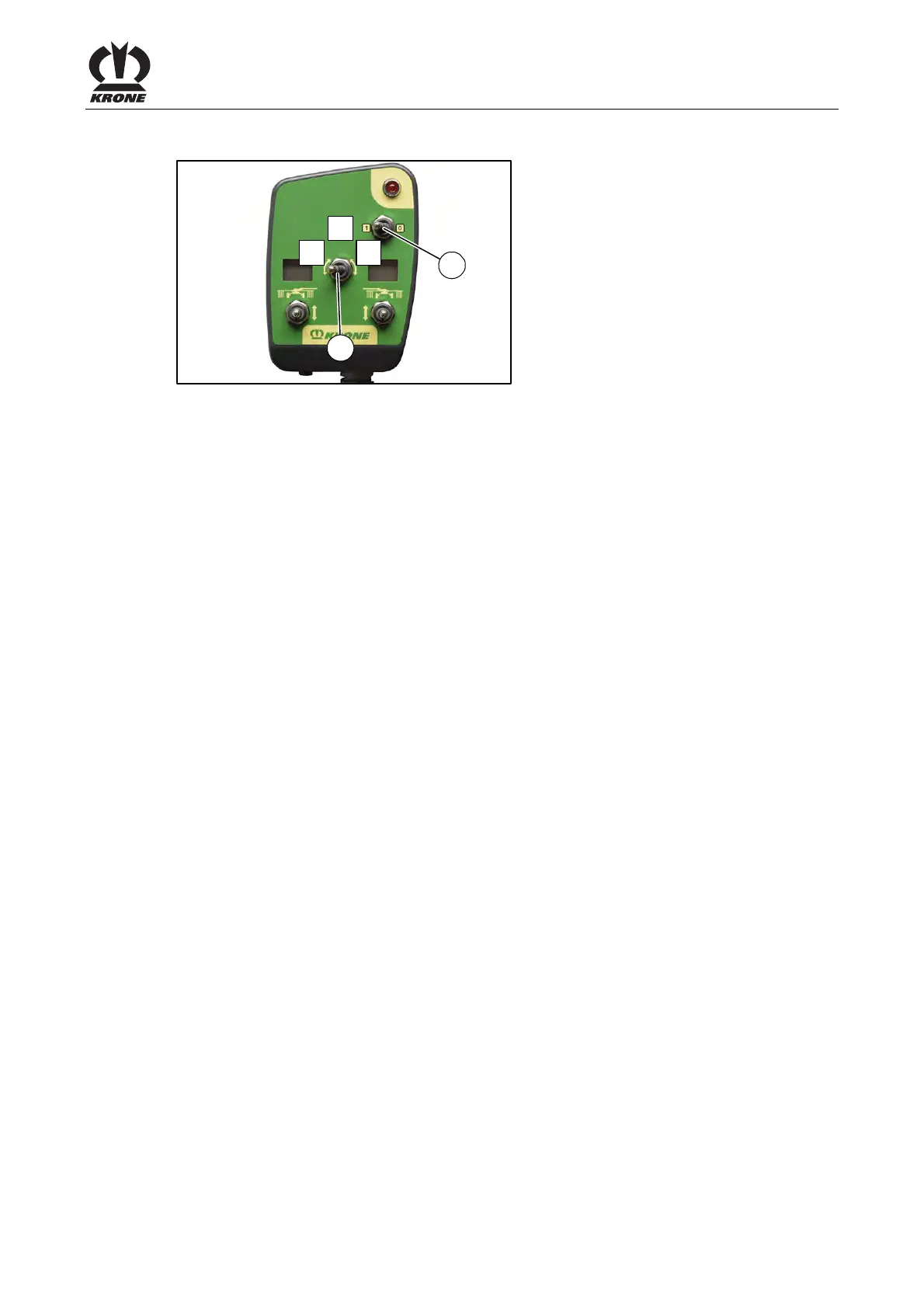

Fig. 55
Pos: 32.117 /BA/Bedienu ng /Schwader/Sc hwaden/Kreiselbetriebe b ei Ausführung elektr ische Einkreiselaush ebung_Text @ 361\mod_14 39446938320_78.d ocx @ 2667646 @ @ 1
Single-rotor operation with right rotor
In order to use just the right rotor for swathing, proceed as follows:
• Move outrigger arms into working position.
• To switch on the operation panel, move switch (1) to position 1.
• Move switch (2) to position (I).
• Actuate the single-action control unit in order to raise the left rotor into headland position.
• To switch off operation panel, move switch (1) to position 0.
Twin-rotor operation
In order to swath with both rotors, proceed as follows:
• Move outrigger arms into working position.
• To switch on the operation panel, move switch (1) to position 1.
• Move switch (2) to position (II).
• Move the single-action control unit to position (“Lowering/float position”).
• To switch off operation panel, move switch (1) to position 0.
Single-rotor operation with left rotor
In order to use just the left rotor for swathing, proceed as follows:
• Move outrigger arms into working position.
• To switch on the operation panel, move switch (1) to position 1.
• Move switch (2) to position (III).
• Actuate the single-action control unit in order to raise the right rotor to headland position.
• To switch off operation panel, move switch (1) to position 0.
