10 TUNING THE CHASSIS 140

B00564-10

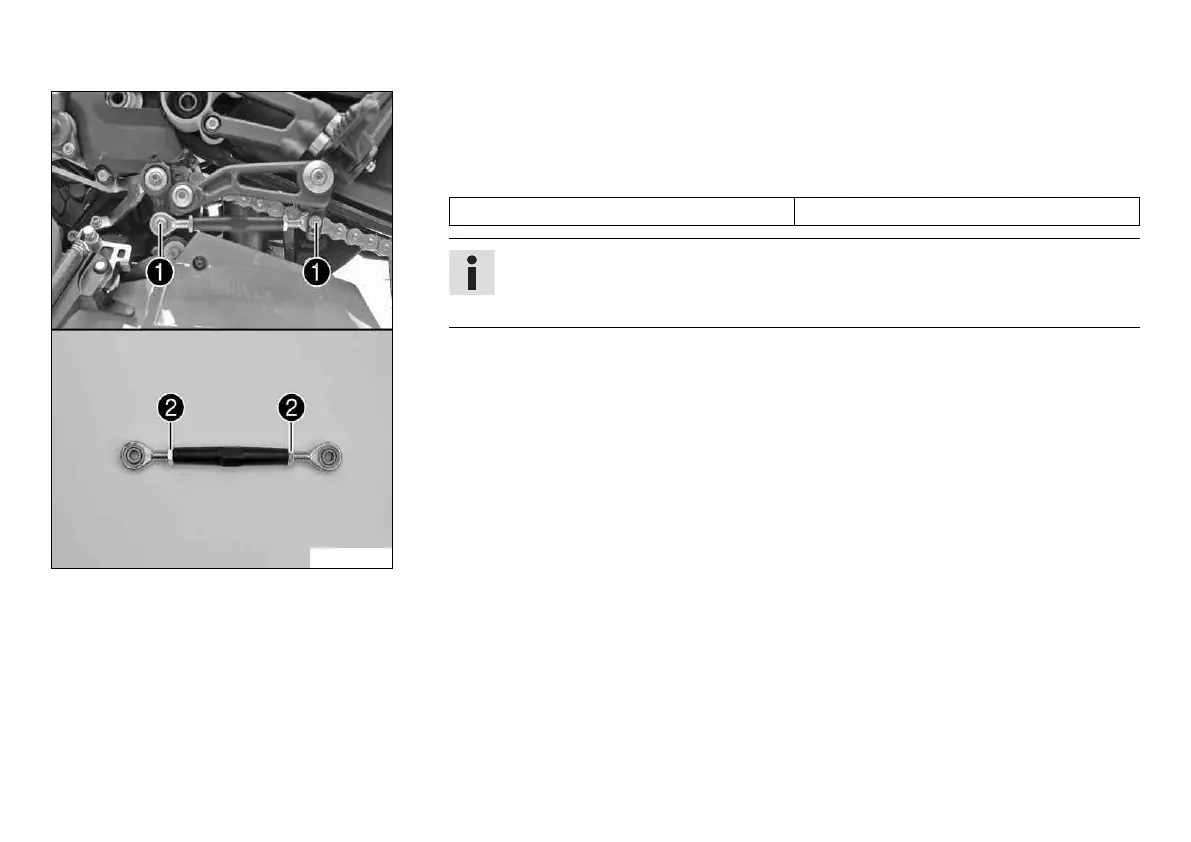

– Remove screws 1 and take off the shift rod.

– Loosen lock nuts 2.

– Adjust the shift rod.

Guideline

Shift rod adjustment range 114… 153 mm (4.49… 6.02 in)

Info

Make the same adjustments on both sides.

At least 5 screw threads must be screwed into the seating.
