14 ELECTRICAL SYSTEM 201

– Close the fuse box cover.

Finishing work

– Fit the seat. ( p. 159)

14.6 Changing the low beam bulb

Note

Damage to reflector Reduced brightness.

– Grease on the lamp will evaporate due to the heat and be deposited on the reflector. Clean the lamp and keep it free of grease before

mounting.

Preparatory work

– Switch off all power consumers and the engine.

100742-10

Main work

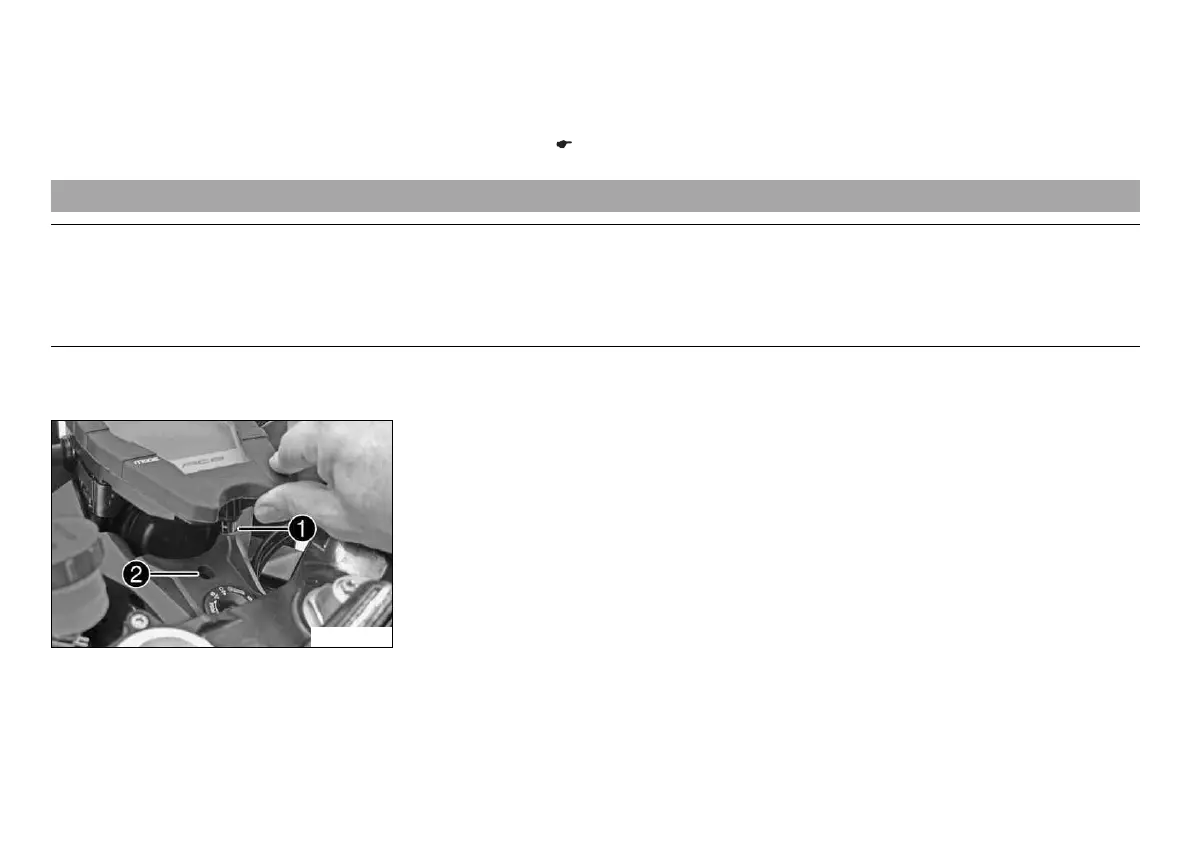

– Fold up the combination instrument. Pull the lug 1 out of the rubber retainer 2.

– Remove the rubber retainer.
