10 TUNING THE CHASSIS 143

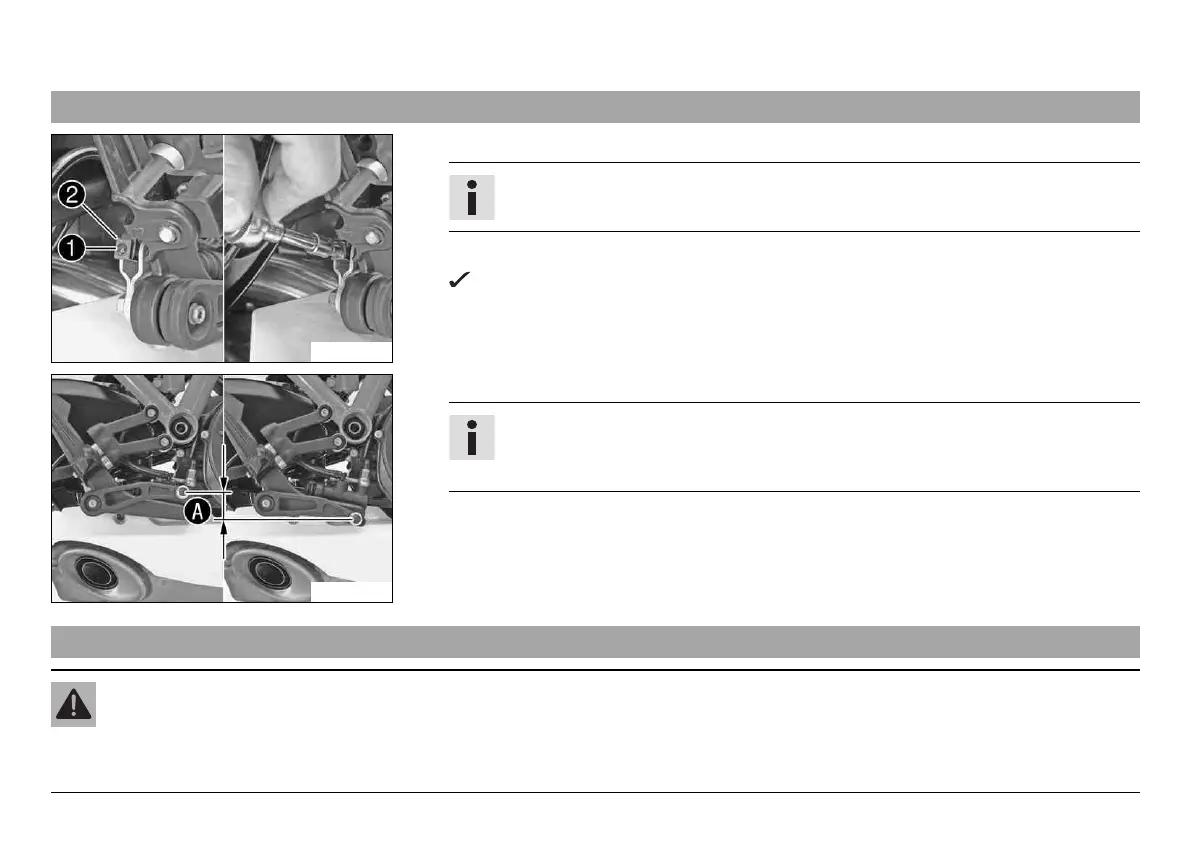

10.20 Adjusting the foot brake lever

100707-10

– Use the tool to press in the anti-rotation lock 2, then turn the piston rod 1.

Info

The range of adjustment is limited.

– Remove the tool.

The spring tension on the anti-rotation lock is released and the hex nut is locked.

100708-10

– Check the foot brake lever setting.

Info

Position A of the foot brake lever may vary considerably, depending on the set-

ting.

10.21 Checking free travel of foot brake lever

Warning

Danger of accidents Brake system failure.

– If there is no free travel on the foot brake lever, pressure builds up on the rear brake circuit. The rear brake can fail due to over-

heating. Adjust the free travel on foot brake lever according to specifications.
