10 TUNING THE CHASSIS 145
600925-10

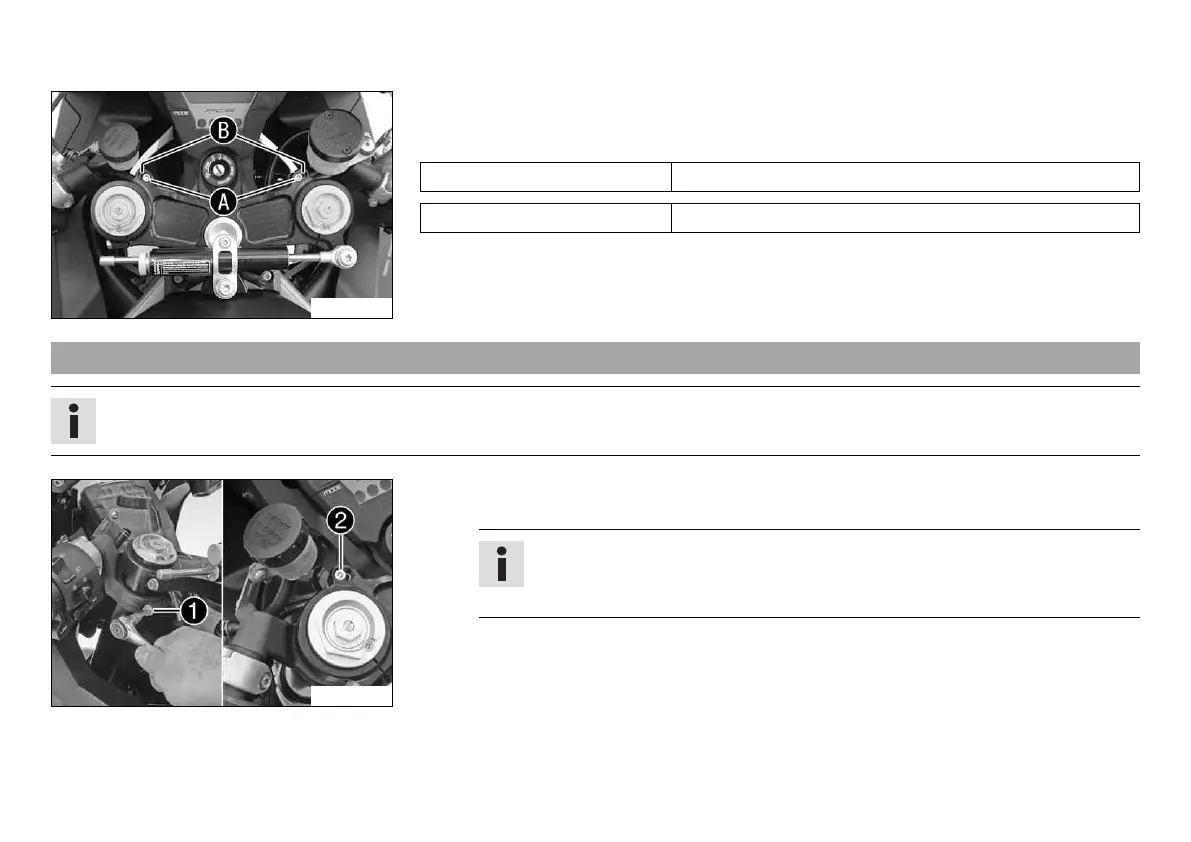

Handlebar position
The handlebar stubs can be set in position A or B, enabling ergonomic adjustment of the
handlebar position.
Handlebar position difference 6.5°
Standard Position A
10.23 Adjusting the handlebar height/position
Info
The handlebar stub position must be identical on the left and right of the vehicle.
100756-11
Adjusting the high position of the handlebar stubs:
– Loosen screw 1.
Info
Loosen the screw several turns to prevent damage to the fork paint when
moving the handlebar stub.
– Remove screw 2.
