16 TUNING THE ENGINE 216

16.2 Adjusting the play in the throttle cable x

B01334-10

– Move the handlebar to the straight-ahead position.

–

Throttle position sensor circuit A - check in zero position. x

Info

It is imperative to use the KTM diagnostics tool for this.

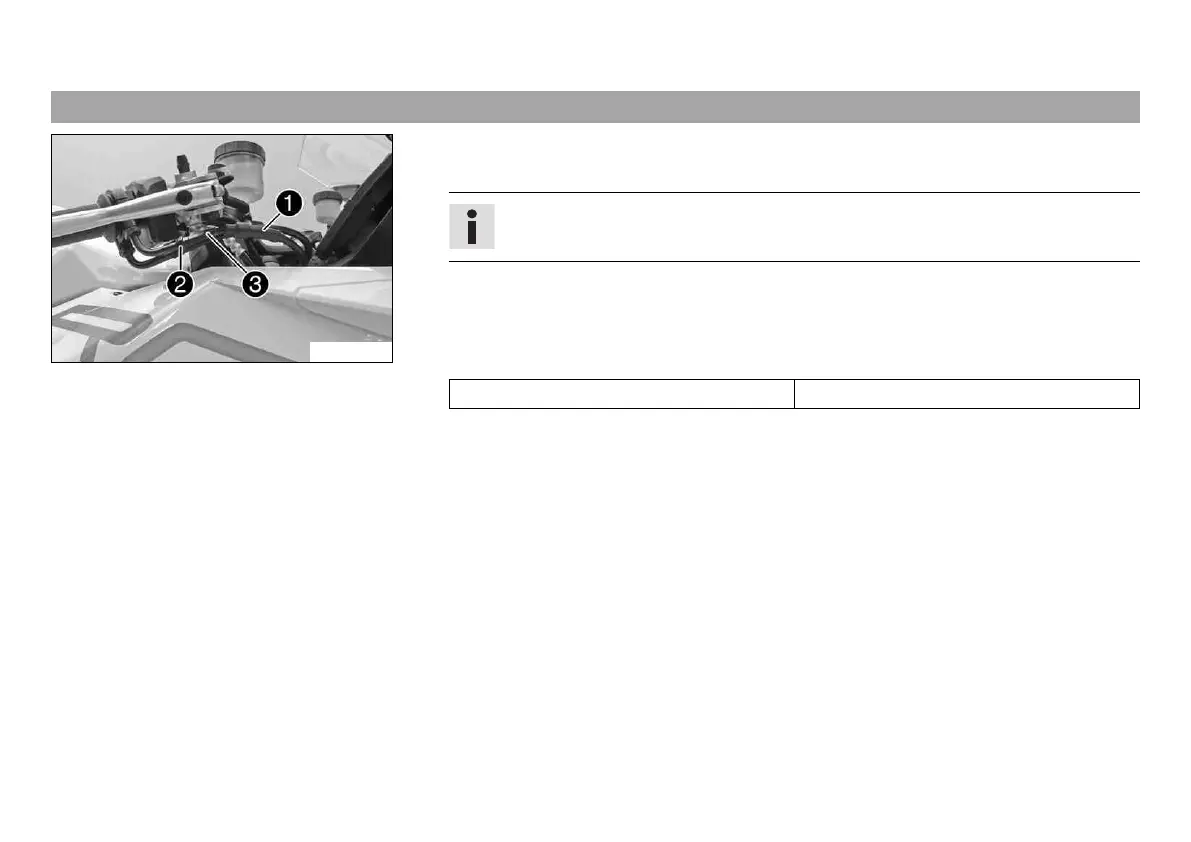

– Push back protective cover 1.

– Loosen lock nut 2.

– Set the play in the throttle cable by turning adjusting screw 3.

Guideline

Throttle cable play 3… 5 mm (0.12… 0.2 in)

– Tighten lock nut 2.

– Mount the protection cap.
