14 ELECTRICAL SYSTEM 193

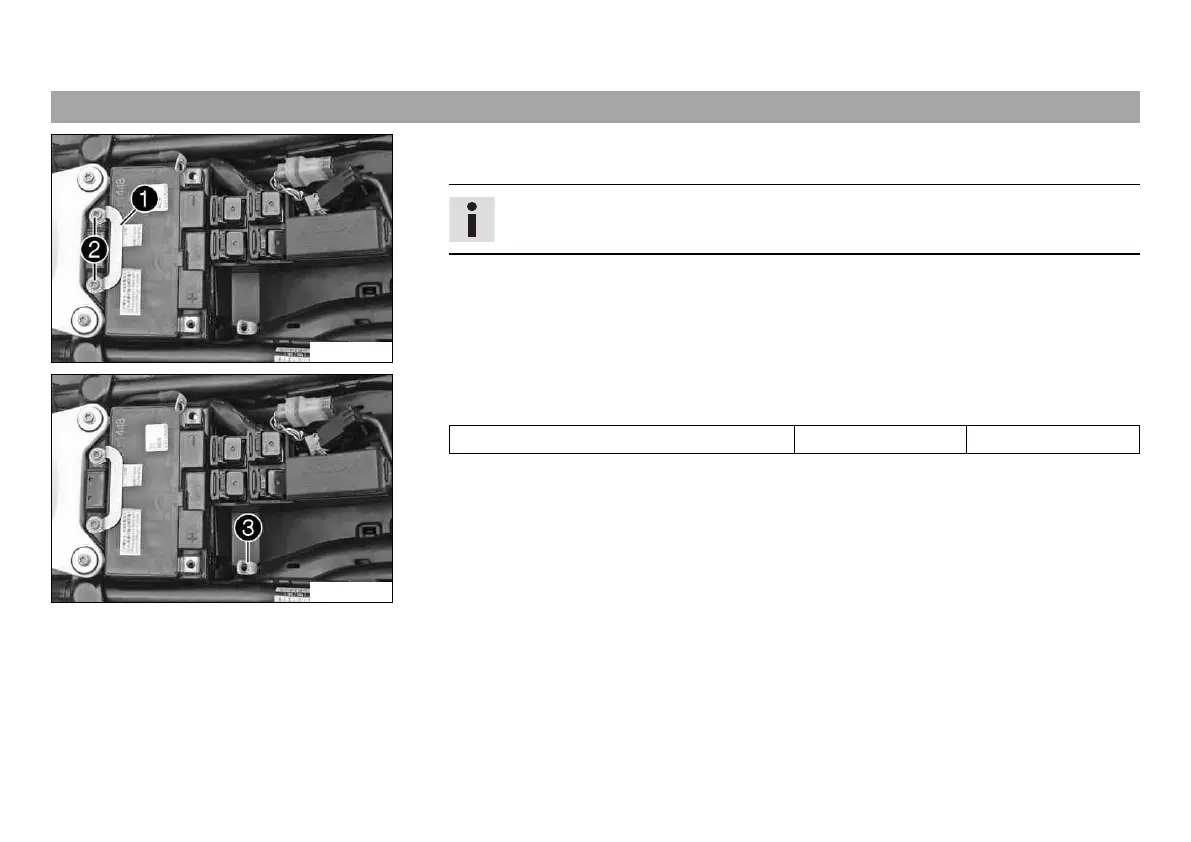

14.2 Installing the battery x

B01329-12

Main work

– Position the battery in the battery rack.

Info

The terminals of the battery must face the rear of the vehicle.

– Position the bracket 1.

B01329-13

– Mount and tighten screws 2.

Guideline

Remaining chassis screws M6 10 Nm (7.4 lbf ft)

– Reconnect the positive (plus) 3 cable of the battery.

– Position cover of the positive terminal.
