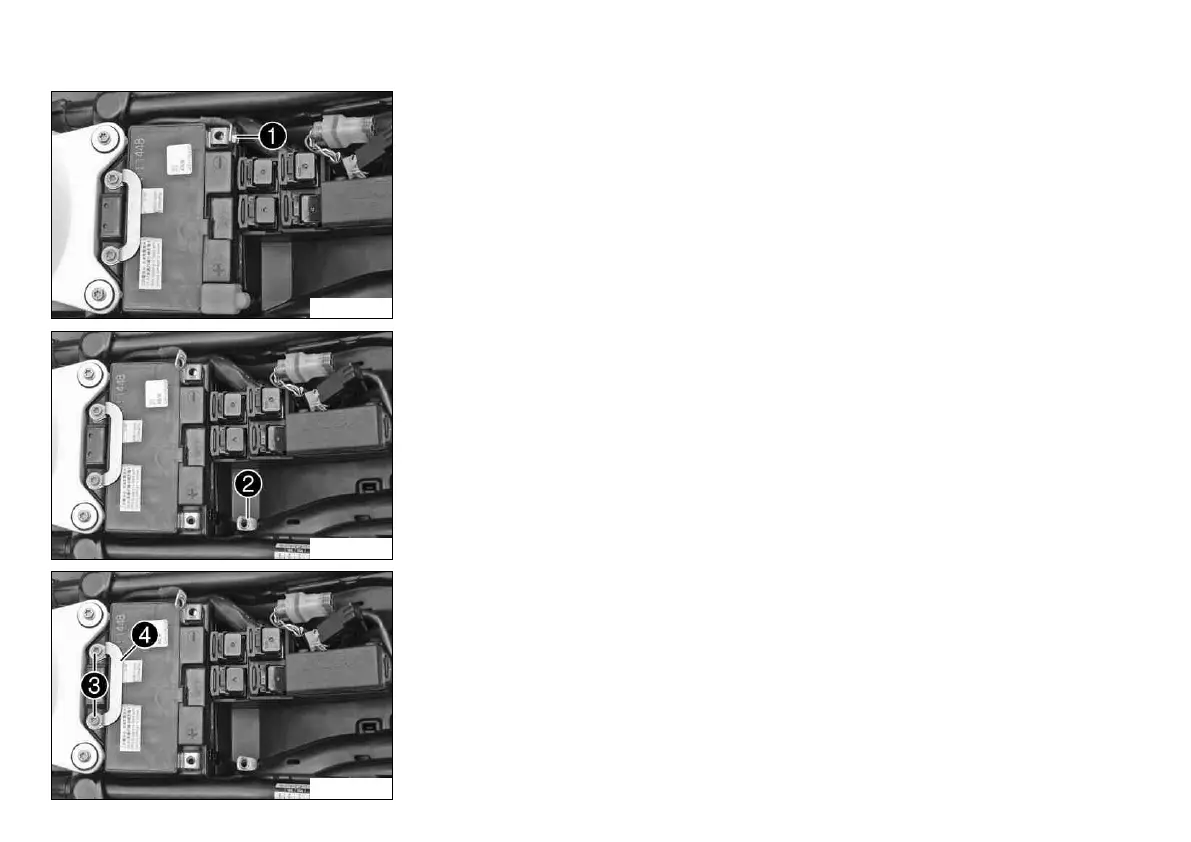

14 ELECTRICAL SYSTEM 192

B01328-10

Main work

– Disconnect negative (minus) cable 1 of the battery.

B01329-10

– Remove the cover of the positive terminal.

– Disconnect the positive (plus) cable 2 of the battery.

B01329-11

– Remove screws 3.

– Removing the securing bracket 4.

– Pull the battery up and out of the battery rack.
