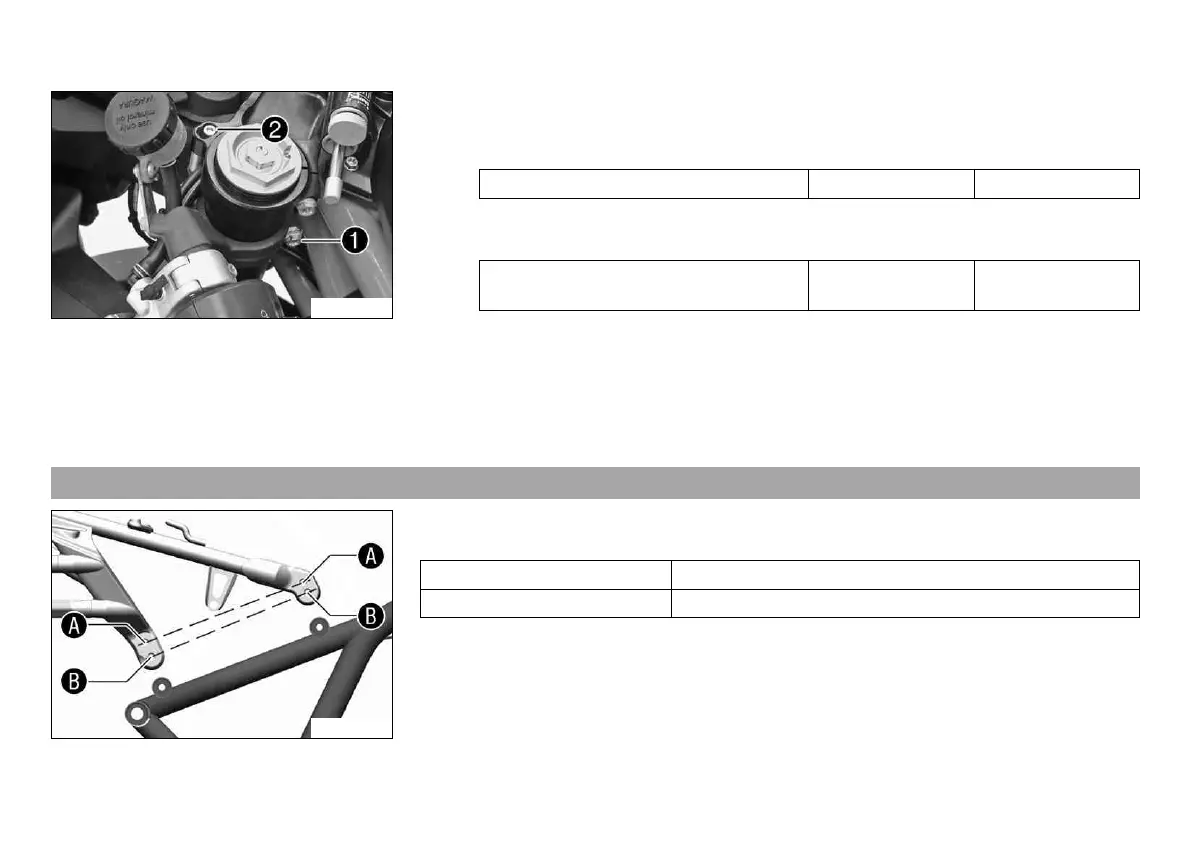

10 TUNING THE CHASSIS 150
600986-11
– Position the distance sleeve.
– Mount and tighten screw 2.
Guideline
Remaining frame bolts M5 5 Nm (3.7 lbf ft)
– Tighten screw 1.
Guideline
Screw, handlebar stub M8 20 Nm
(14.8 lbf ft)
– Repeat the adjustments on the other handlebar stub.
– Carefully move the handlebar to and fro over the entire steering range.
» If a component restricts the freedom of movement of the steering or comes into
contact with the trim:
– Establish freedom of movement and reposition the component.
10.24 Rear frame position
400439-10
The frame rear height can be set to two different positions, enabling ergonomic adjustment
of the seat height.
Seat height A 805 mm (31.69 in)
Seat height B (standard) 825 mm (32.48 in)
