6 CONTROLS 30

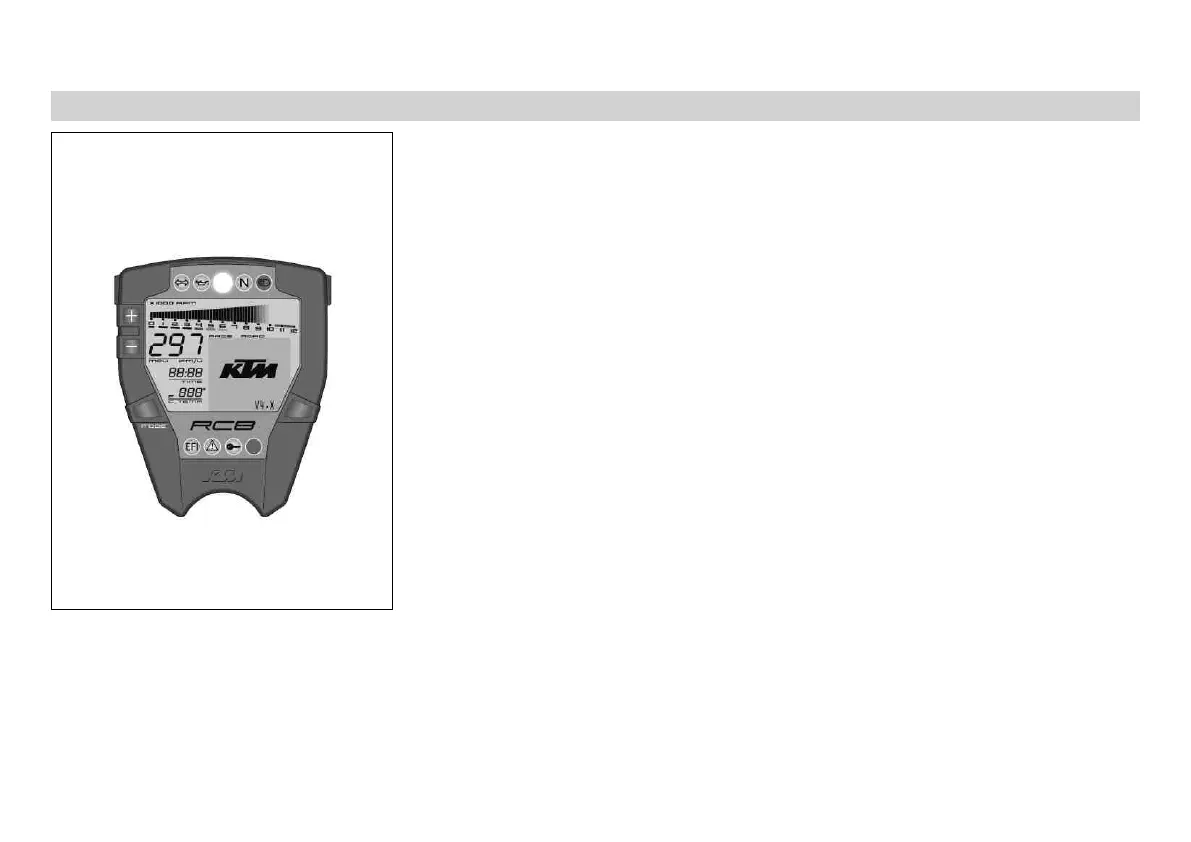

6.11.3 Activation and test
401120-01
Activation
The combination instrument is activated when the ignition is switched on.
Test
The segments of the tachometer and the gear display light up in and switch off in
sequence.
The speed display counts from 0 to 300 and back.
The remaining display segments outside the info display light up briefly.
The KTM logo appears in the info display.
The display then changes to the last selected mode.
