10 TUNING THE CHASSIS 144
B01316-10

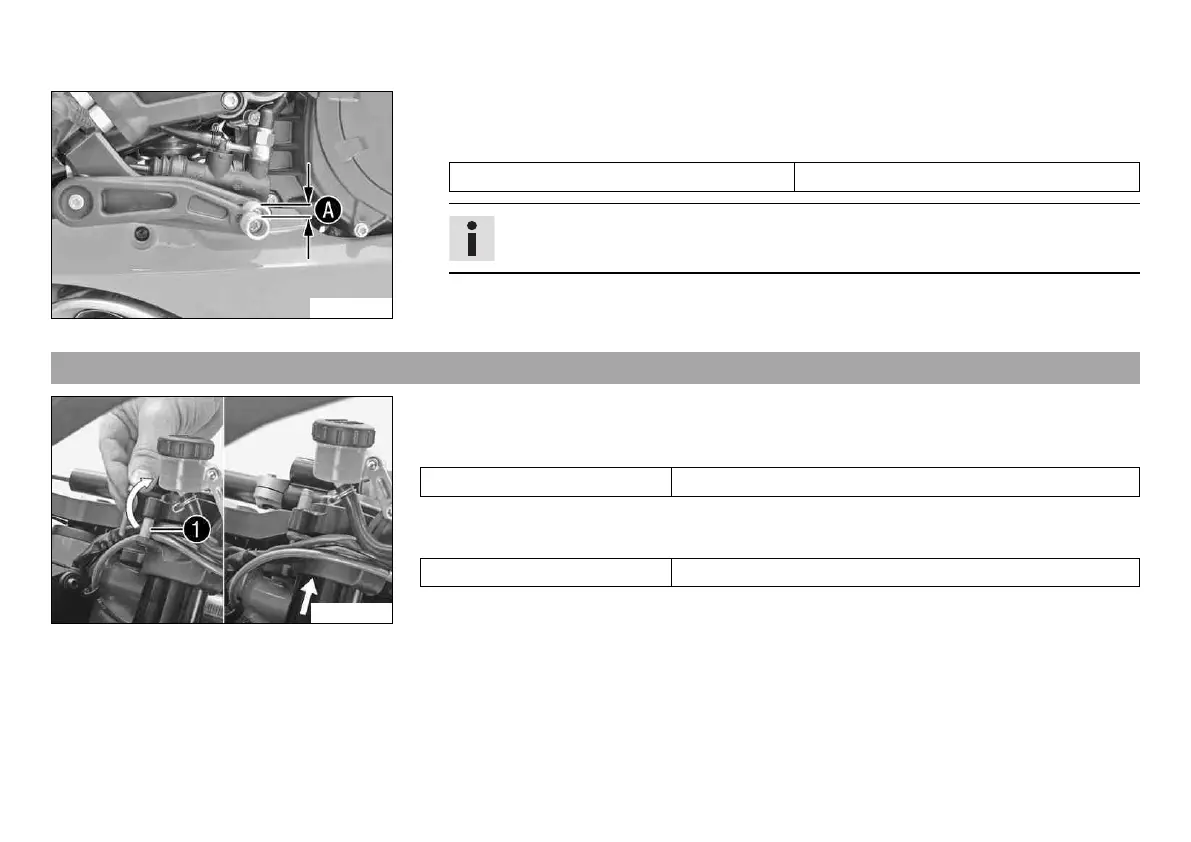

– Move the foot brake lever back and forth between the end stop and the contact to the
foot brake cylinder piston and check free travel A.
Guideline
Free travel at foot brake lever 3… 5 mm (0.12… 0.2 in)
Info
The piston rod should not move in the process.
» If the free travel does not meet specifications:
– Adjust the free travel.
10.22 Handlebar height/position
100755-10
Handlebar height
By removing or inserting distance sleeve 1, you can set the handlebar height to two differ-
ent positions.
Length, distance sleeve 15 mm (0.59 in)
With distance sleeves, the handlebar stub is positioned low for sports use. Removing the
distance sleeves gives a more upright sitting position.
Standard Low position with distance sleeve
