6 CONTROLS 35

401124-01

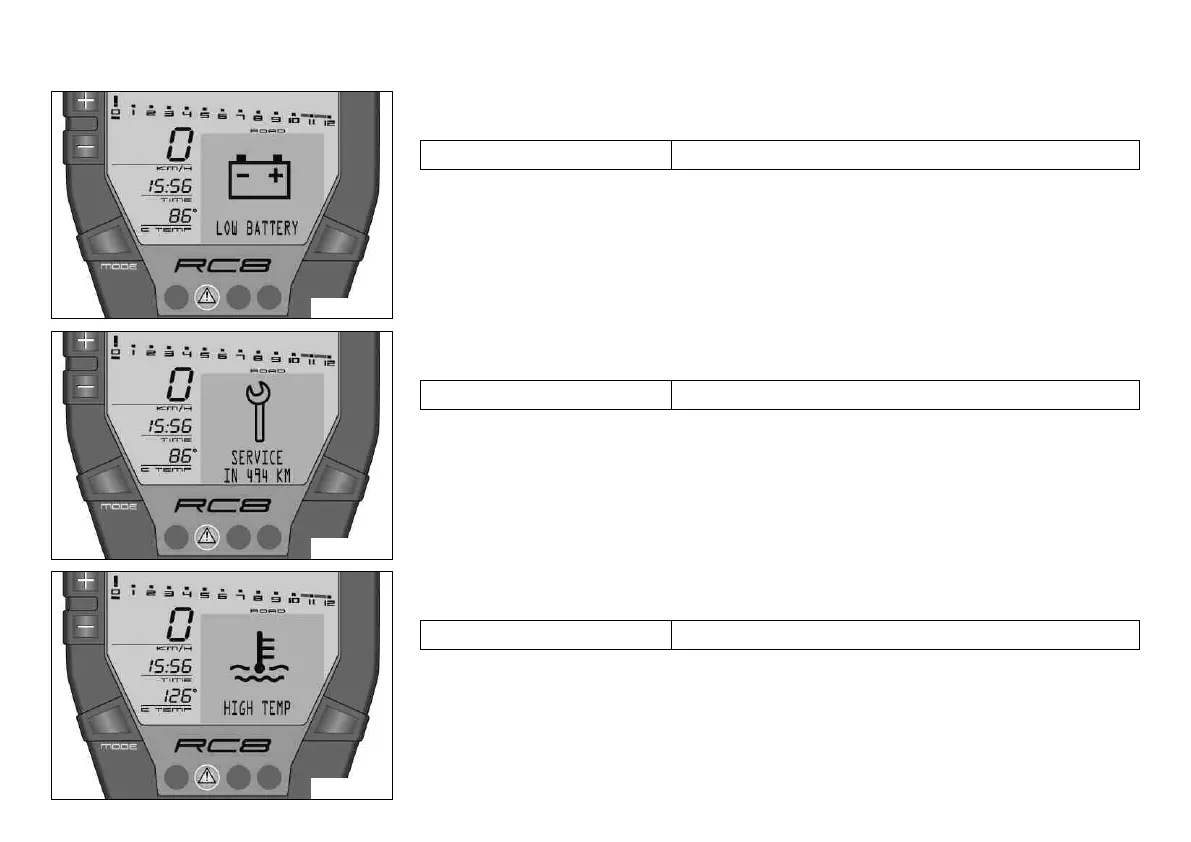

LOW BATTERY appears on the info display if the battery voltage falls below the specified

value.

Battery voltage 10.80 V

401125-01

SERVICE IN xxx KM(MPH) appears on the info display if the distance to the next service falls

below the specified value.

Distance 500 km (310.7 mi)

401166-01

HIGH TEMP appears on the info display if the coolant temperature rises above the specified

value.

Coolant temperature 120 °C (248 °F)

Default Chapter5
- Table of Contents5
