13.STEERING HANDLEBAR/FRONT WHEEL/FRONT BRAKE/FRONT SHOCK

ABSORBER/FRONT FORK

13-6

SUPER8 50 2T

Apply grease to a new dust seal lip and install

the dust seal.

Install the side collar.

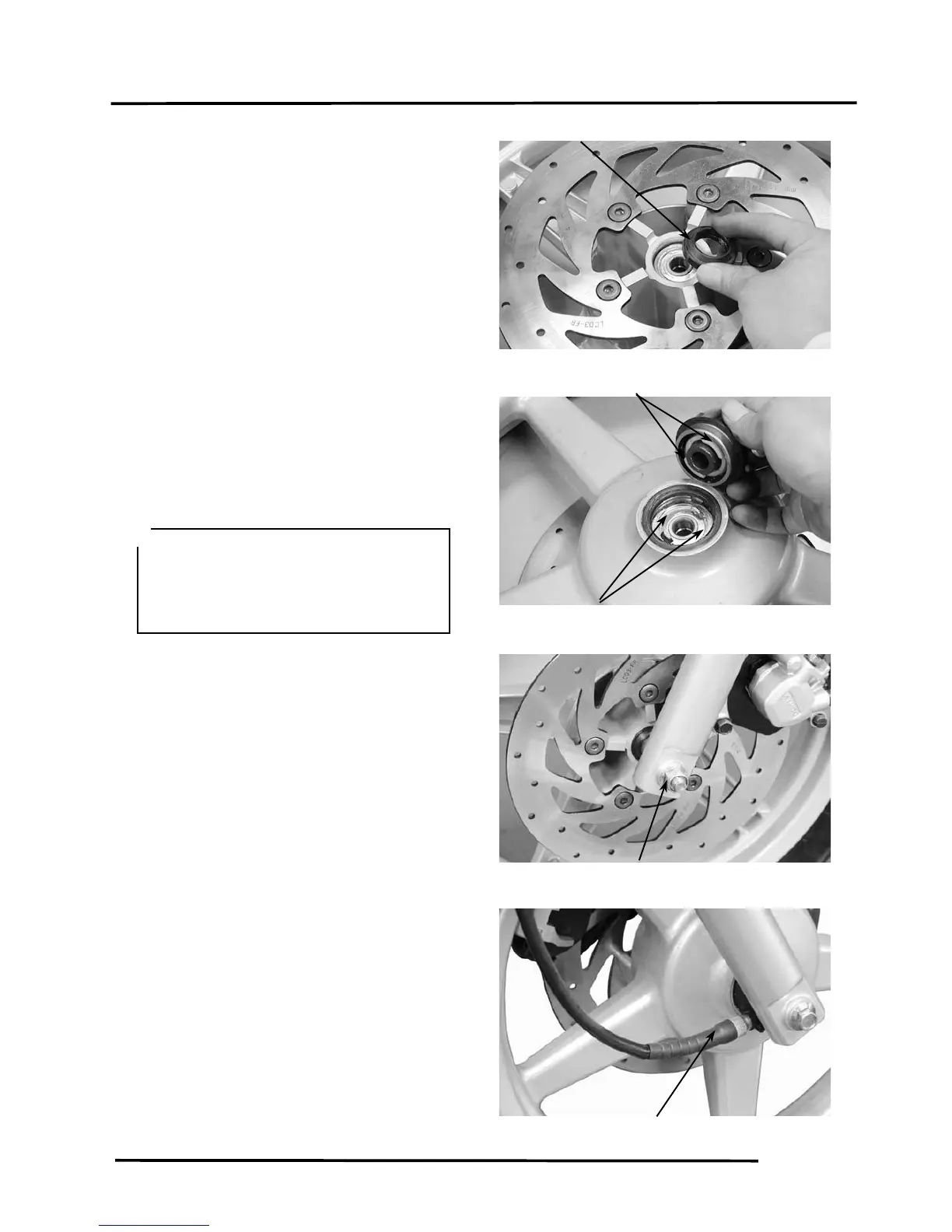

INSTALLATION

Apply grease to the brake panel dust seal lip.

Apply grease to the speedometer gear

engaging and sliding parts.

Install the brake panel by aligning the

speedometer retaining pawls with the hub

cutouts.

Apply a thin coat of grease to the axle shaft.

Install the front wheel by aligning the brake

panel groove with the front fork tab.

Insert the axle shaft.

Install and tighten the axle nut.

Torque: 5.0~7.0kg-m

Install the front brake cable and rotate the

front tire to check the speedometer if be

performed.

Connect the speedometer cable.

Pawls

If not aligned, the retaining pawl will be

deformed when the axle nut is tightened.

After installing the axle, turn the wheel to

make sure that the speedometer drive

shaft rotates freely.

＊

Cutouts

Dust Seal

xle Nut

Speedometer Cable
