14. REAR WHEEL/REAR BRAKE/REAR

SHOCK ABSORBER

14-5

SUPER8 50 2T

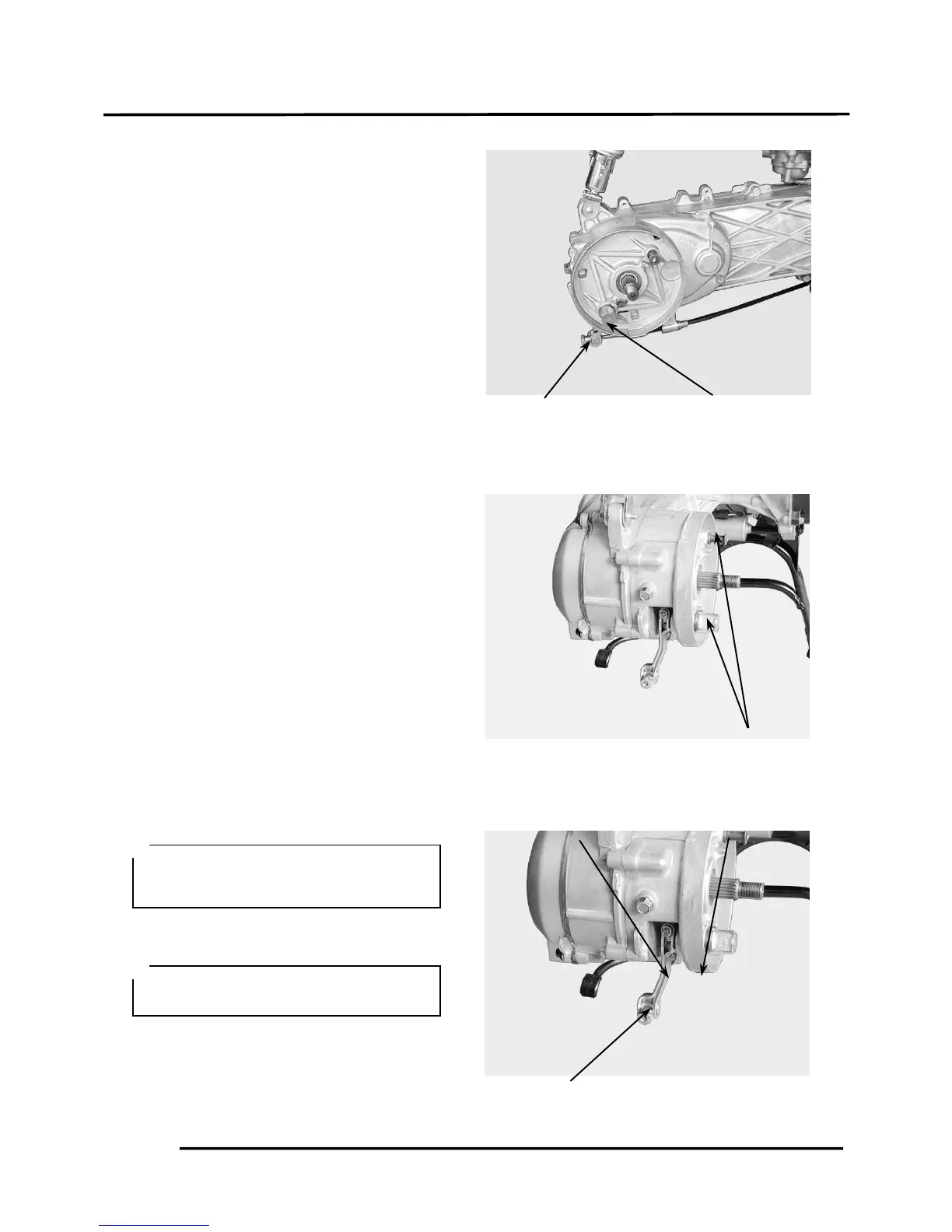

Remove the brake cam bolt to remove the

brake arm, wear indicator plate and felt

seal.

Remove the brake arm.

REAR BRAKE ASSEMBLY

Apply grease to the anchor pin and brake

shoe moving parts.

Apply grease to the brake cam and install it.

Apply engine oil to the felt seal and install it

to the brake cam.

Install the wear indicator plate.

Install the brake arm onto the brake cam.

Install and tighten the brake arm bolt.

Install the brake arm return spring.

Install the brake shoes.

lign the wide tooth of the wear indicato

plate with the wide groove on the brake

cam.

＊

Brake Arm

Brake Cam

Grease

Brake Arm

Punch Mark

Wear Indicator Plate

Align the punch mark on the brake arm

with the scribed line on the brake cam.

＊
