14. REAR WHEEL/REAR BRAKE/REAR

SHOCK ABSORBER

14-6

SUPER8 50 2T

Install the brake arm pin.

Connect the brake cable and install the

adjusting nut.

Install the rear wheel. (

14-3)

Adjust the rear brake lever free play.

(

3-4)

REAR SHOCK ABSORBER

REMOVAL

Remove the front cover. (

12-6)

Remove the met-in box. (

12-5)

Remove the air cleaner case. (

5-2)

Remove the rear shock absorber upper and

lower mount bolts to remove the rear shock

absorber.

INSTALLATION

Install the rear shock absorber.

Install the rear shock absorber upper mount

bolt and then install the lower mount bolt.

Torque:

Upper Mount Bolt: 3.5～4.5kg-m

Lower Mount Bolt: 2.4～3.0kg-m

Install the frame body cover. (

12-5)

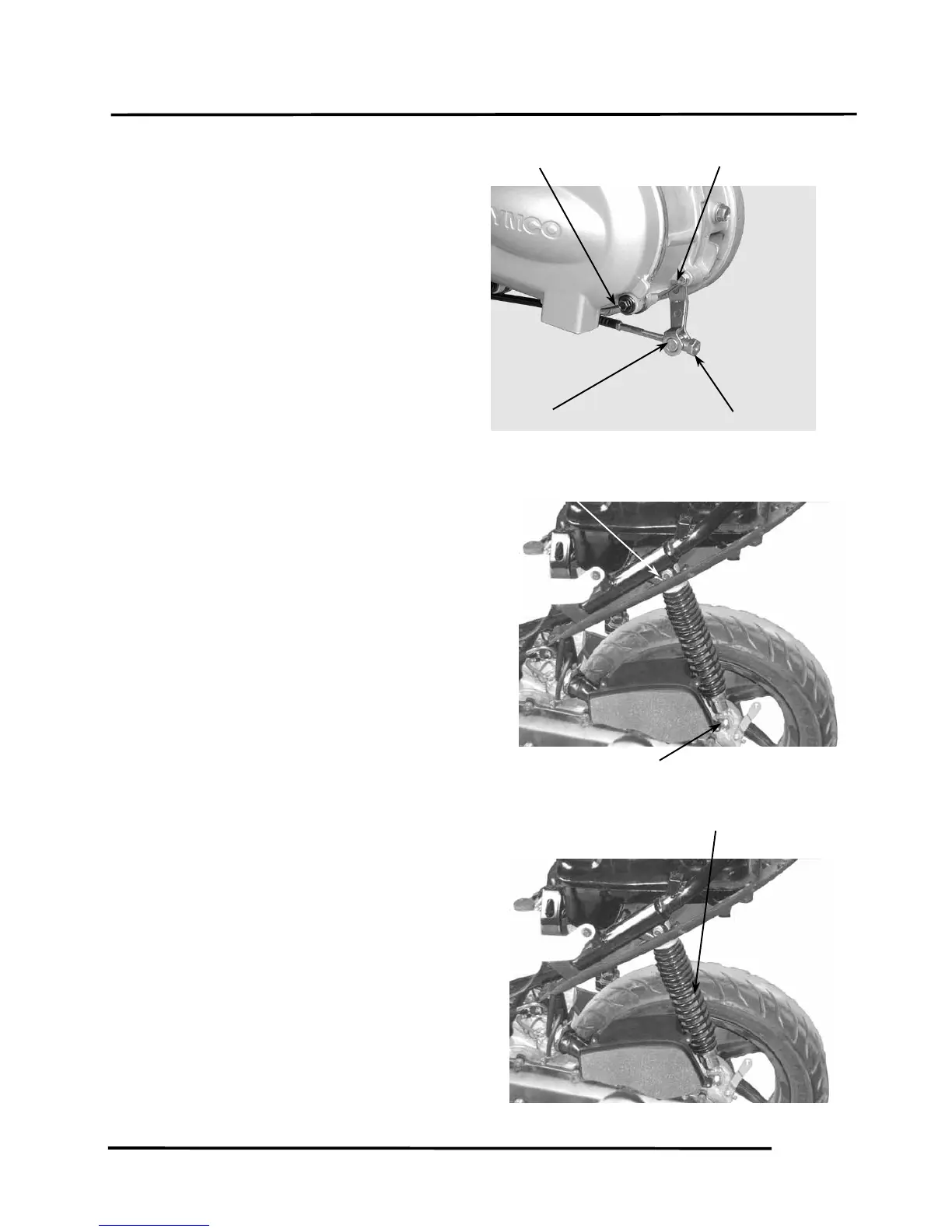

Brake Arm

djusting Nut

Brake Arm Pin

Brake Cable

Upper Mount Bolt

Lower Mount Bolt

Rear Shock Absorbe
