8. KICK STARTER/DRIVE PULLEY/
CLUTCH/DRIVEN PULLEY
8-10
SUPER8 50 2T

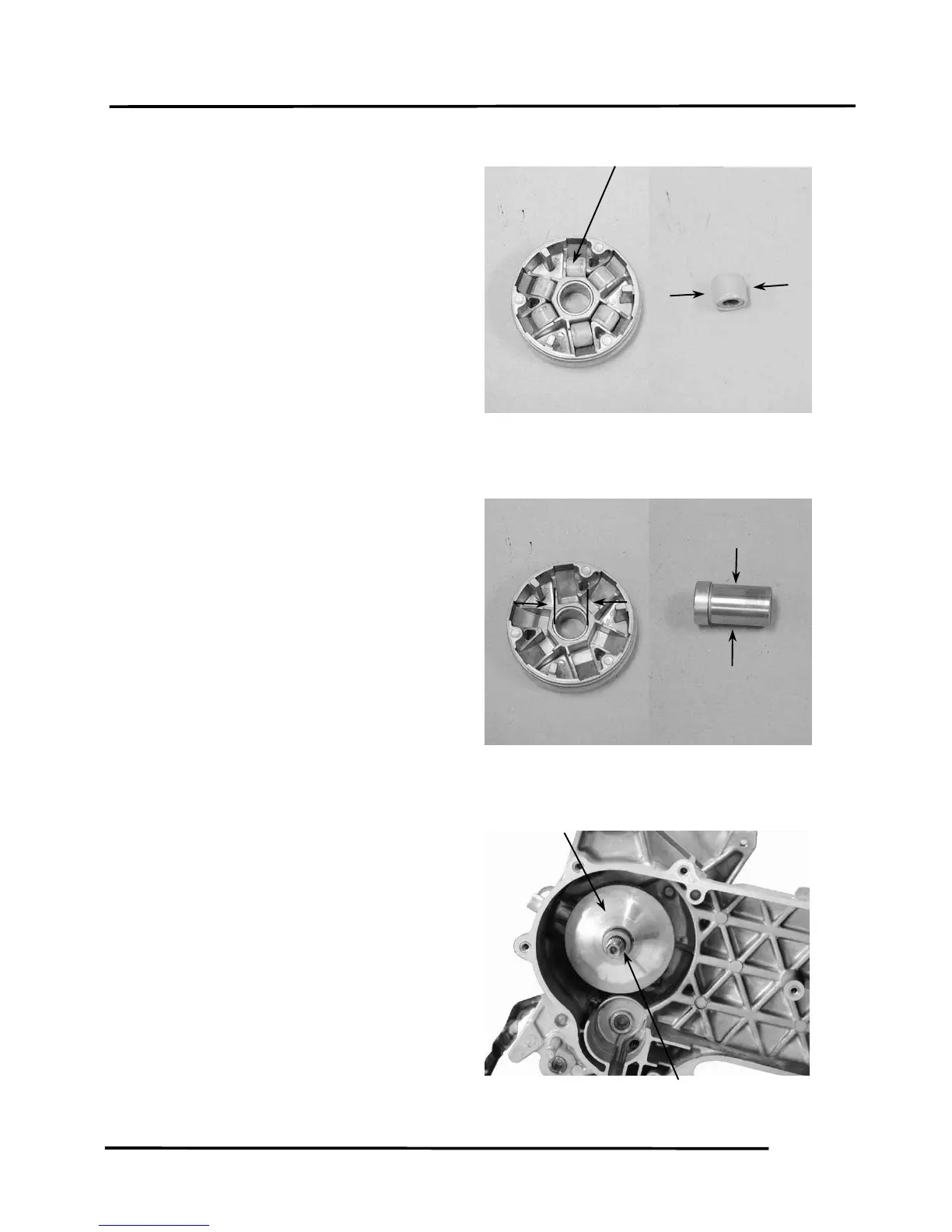

MOVABLE DRIVE FACE INSPECTION
Remove the weight rollers.
Check each weight roller for wear or
damage.
Measure each roller O.D.
Service Limit:
12.4mm replace if below
Measure the movable drive face bushing
assembly I.D.
Service Limit:
20.3mm replace if over
Check the drive pulley collar for wear or
damage.
Measure the O.D. of the drive pulley collar
sliding surface.
Service Limit:
19.9mm replace if below
DRIVE PULLEY INSTALLATION
Install the drive pulley collar and movable
drive face onto the crankshaft.
Weight Rolle
r
Movable Drive Face
Drive Pulley Colla
r
