16. INSTRUMENT/SWITCHES/LIGHTS
16-3
SUPER8 50 2T
INSTALLATION
The installation sequence is the reverse of
removal.

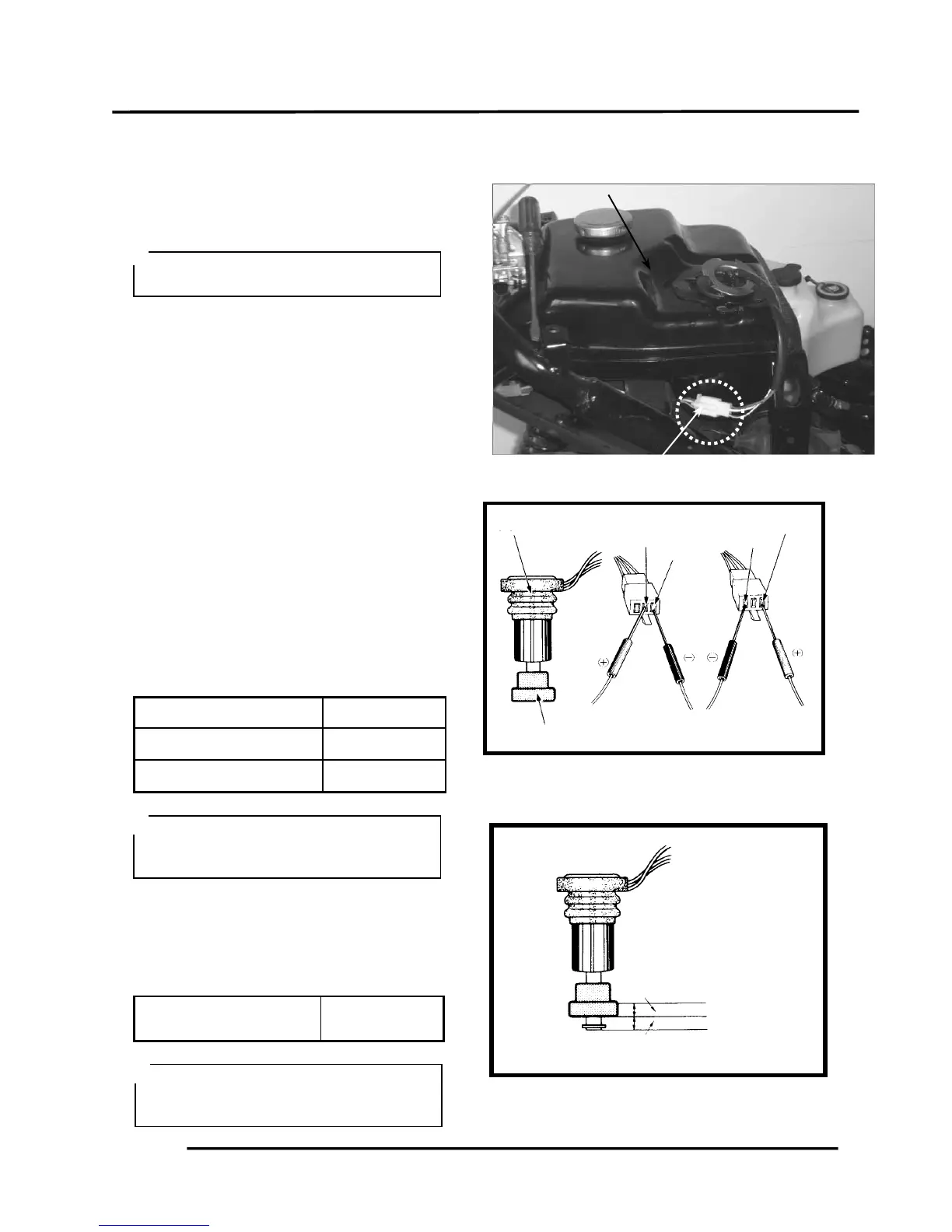

OIL METER
INSPECTION
Remove the met-in box. (
Ö
12-4)
Remove the frame body cover. (
Ö
12-4)
Disconnect the oil meter wire connectors
and remove the oil meter. Keep the oil
meter float at the lower position.
Measure the resistances between the wire
terminals as c and d shown in the left
figure.
Wire Terminals Resistance
Green/Red(+)～Black(-) 46Ω
Green(-)～Black(+) ∞
Oil Meter Operation Inspection
Connect the oil meter wire connectors and
turn the ignition switch ON.
Measure the resistance between the wire
terminals with the float at upper position.
Green/Red(+)～Black(-) About 300Ω
• Install the fuel unit at the connect
position.
＊
Light OFF
Before performing the following test,
operate the turn signals to determine
that the battery circuit is normal.
＊
Oil Mete
r
Float
G/R
B
B
d
c
Before removing the oil meter, be sure
to drain the motor oil and do not allow
sparks or flames near the working area.
＊
G
Fuel Unit
Wire Connecto
r
Light OFF
Light ON
4.5±1.0mm

KYMCO SUPER8 50 2T Specifications

General

Engine Type	2-stroke, single cylinder
Fuel System	Carburetor
Transmission	CVT automatic
Front Suspension	Telescopic fork
Rear Suspension	Single Shock
Front Brake	Disc
Rear Brake	Drum
Front Tire	120/70-12
Rear Tire	130/70-12
Seat Height	780 mm
Ignition	CDI
Starter	Electric & Kick
Width	700 mm
Cooling System	Air-cooled
