13.STEERING HANDLEBAR/FRONT WHEEL/FRONT BRAKE/FRONT SHOCK
ABSORBER/FRONT FORK
13-16
SUPER8 50 2T

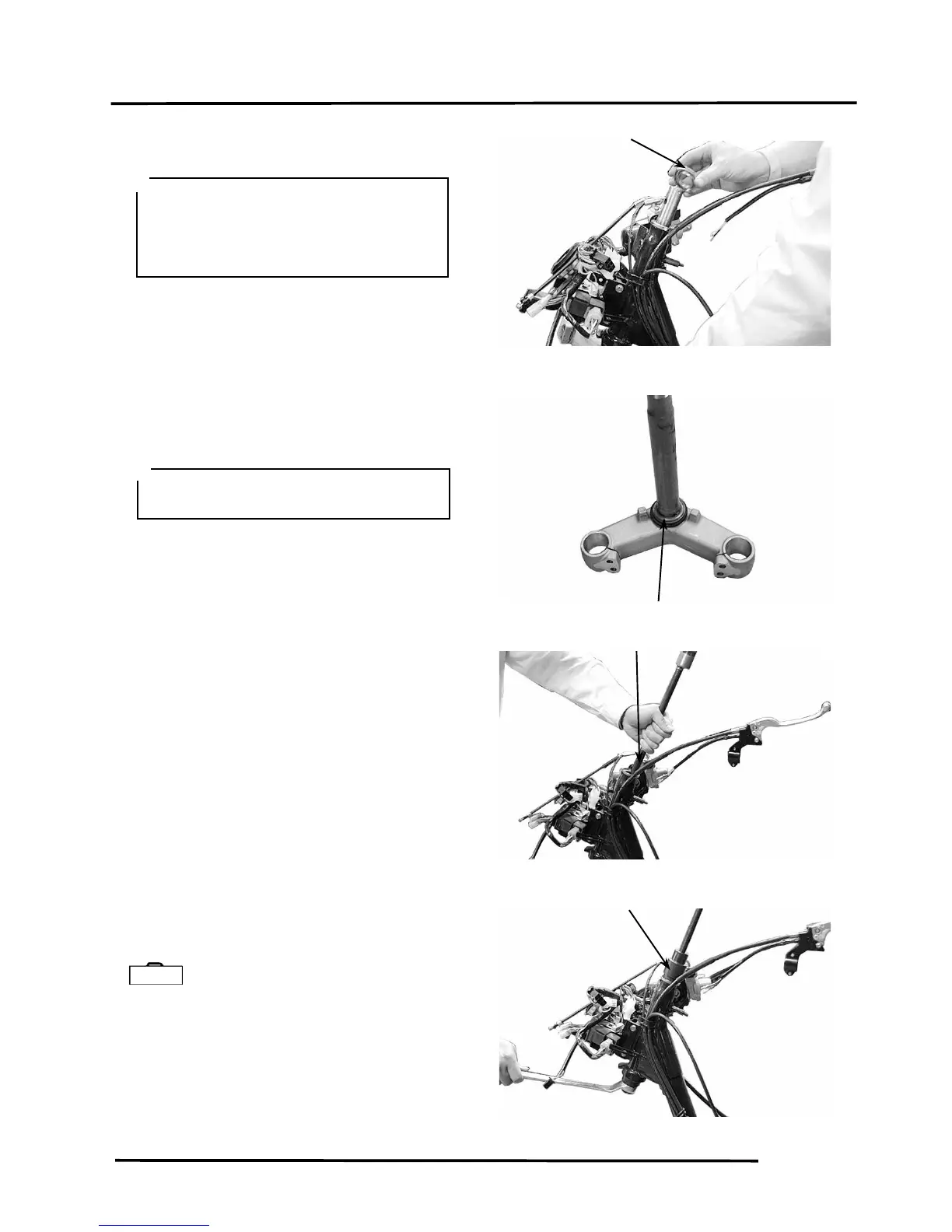

Remove the top cone race.
Remove the front fork.
BOTTOM CONE RACE REPLACEMENT
Remove the bottom cone race using a chisel.
Drive a new bottom cone race into place with
a proper driver.
BALL RACE REPLACEMENT
Drive out the top and bottom ball races.
Drive new top and bottom ball races into the
steering head using the outer driver.
Outer Driver
INSTALLATION
Install the top and bottom steel balls.
Bottom Cone Race
Ball Race Remove
r
Outer Drive
r
Top Cone Race
Be careful not to lose the steel balls (20
on top race and 15 on bottom race).
Clean the openings of frame covers
with clean shop towels.
Be careful not to damage the steering
stem and front fork.
Special
