8. KICK STARTER/DRIVE PULLEY/
CLUTCH/DRIVEN PULLEY
8-12
SUPER8 50 2T
CLUTCH/DRIVEN PULLEY

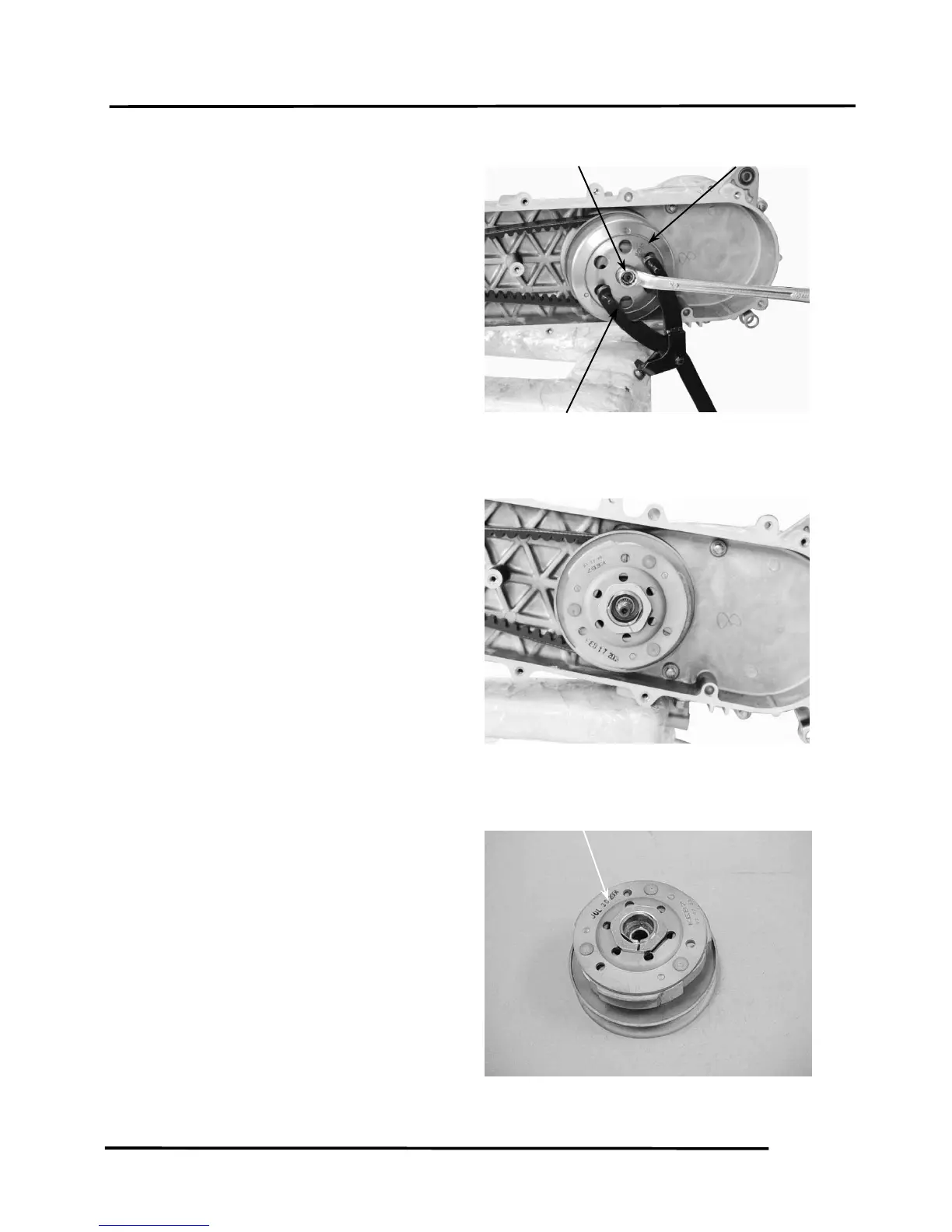

CLUTCH/DRIVEN PULLEY REMOVAL
Remove the drive pulley. (
Ö
8-8)
Hold the clutch outer with the universal
holder and remove the 10mm clutch outer
nut.
Remove the clutch outer.
Remove the clutch/driven pulley.
Remove the drive belt from the
clutch/driven pulley.
CLUTCH/DRIVEN PULLEY DIS-
ASSEMBLY
Compress the clutch/driven pulley spring
with the clutch spring compressor and
remove the 28mm drive plate nut.
Remove the driven face spring.
Clutch/Driven Pulley
Universal Holde
r
Clutch Oute
r
10mm Clutch Outer Nut
