8. KICK STARTER/DRIVE PULLEY/
CLUTCH/DRIVEN PULLEY
8-8
SUPER8 50 2T

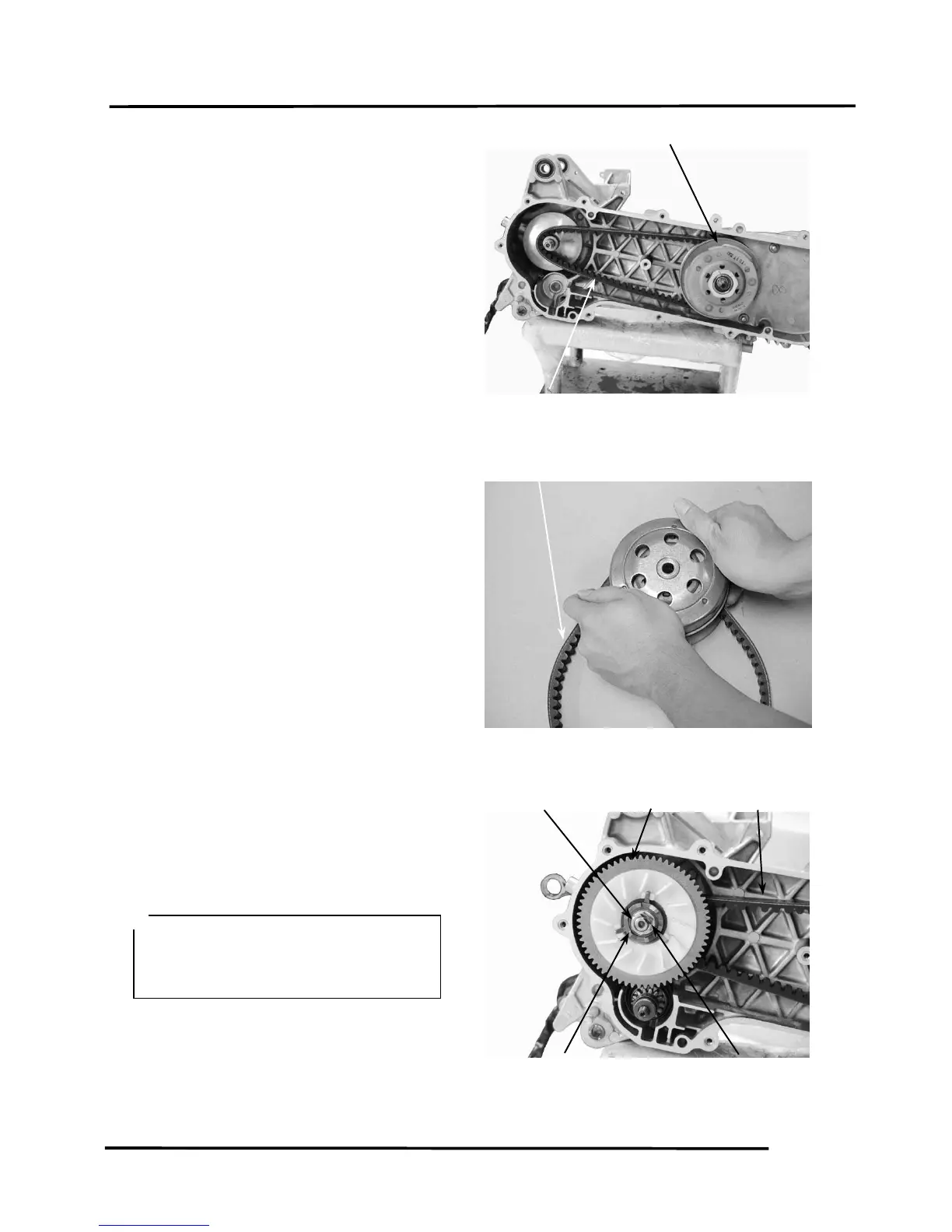

Remove the drive belt from the clutch/
driven pulley.
DRIVE BELT INSTALLATION
Turn the driven pulley clockwise and lift it
up to expand the drive belt groove and then
install a new drive belt.
Set the drive belt on the drive pulley.
Install the drive pulley face, starting ratchet
and 12mm washer, then tighten the drive
face nut.
Torque: 3.5～4.0kg-m
Clutch/Driven Pulley
Drive Belt
Drive Belt
Drive Pulley Face
12mm Washe
r
Drive Belt
Starting Ratchet
Drive Face Nut
When installing the drive face nut, make
sure that the tooth spaces of the drive
pulley face and starting ratchet align
with the teeth of the crankshaft.
＊
