16. INSTRUMENT/SWITCHES/LIGHTS
16-6
SUPER8 50 2T

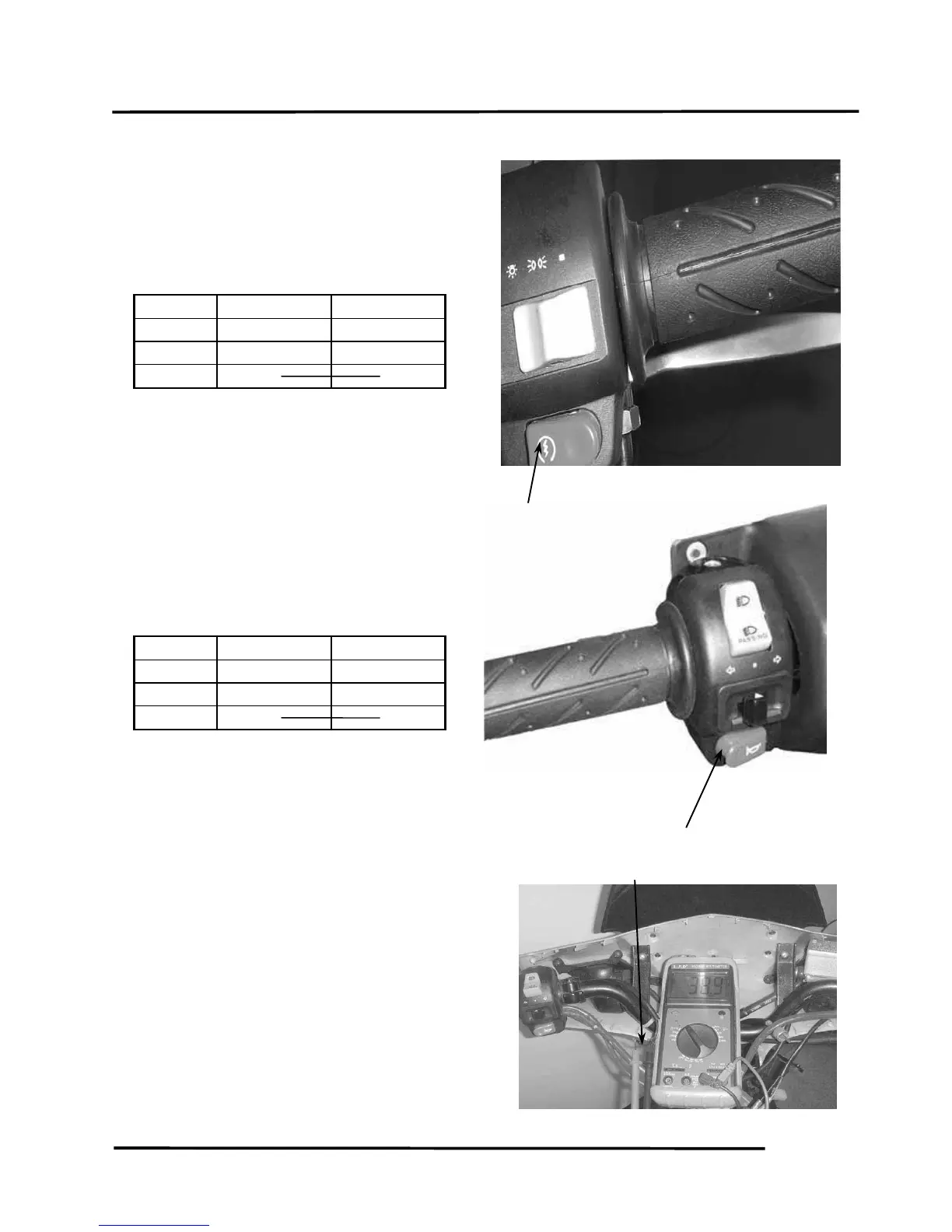

STARTER SWITCH INSPECTION
Check for continuity between wire
terminals.
Push the starter button when measuring.
Color Y/R G
Symbol ST E
FREE
PUSH ○○
HORN SWITCH INSPECTION
Check for continuity between wire
terminals.
Push the horn button when measuring.
Color Light Green Brown / Blue
Symbol HO BAT
FREE
PUSH ○○
STOP SWITCH INSPECTION
Remove the handlebar front cover. (
Ö
12-3)
Disconnect the front and rear stop switch
wire couplers.
Check for continuity between the wire
terminals when the front/rear brake lever is
applied.
Horn Switch
Starter Switch
Stop Switch Wire
