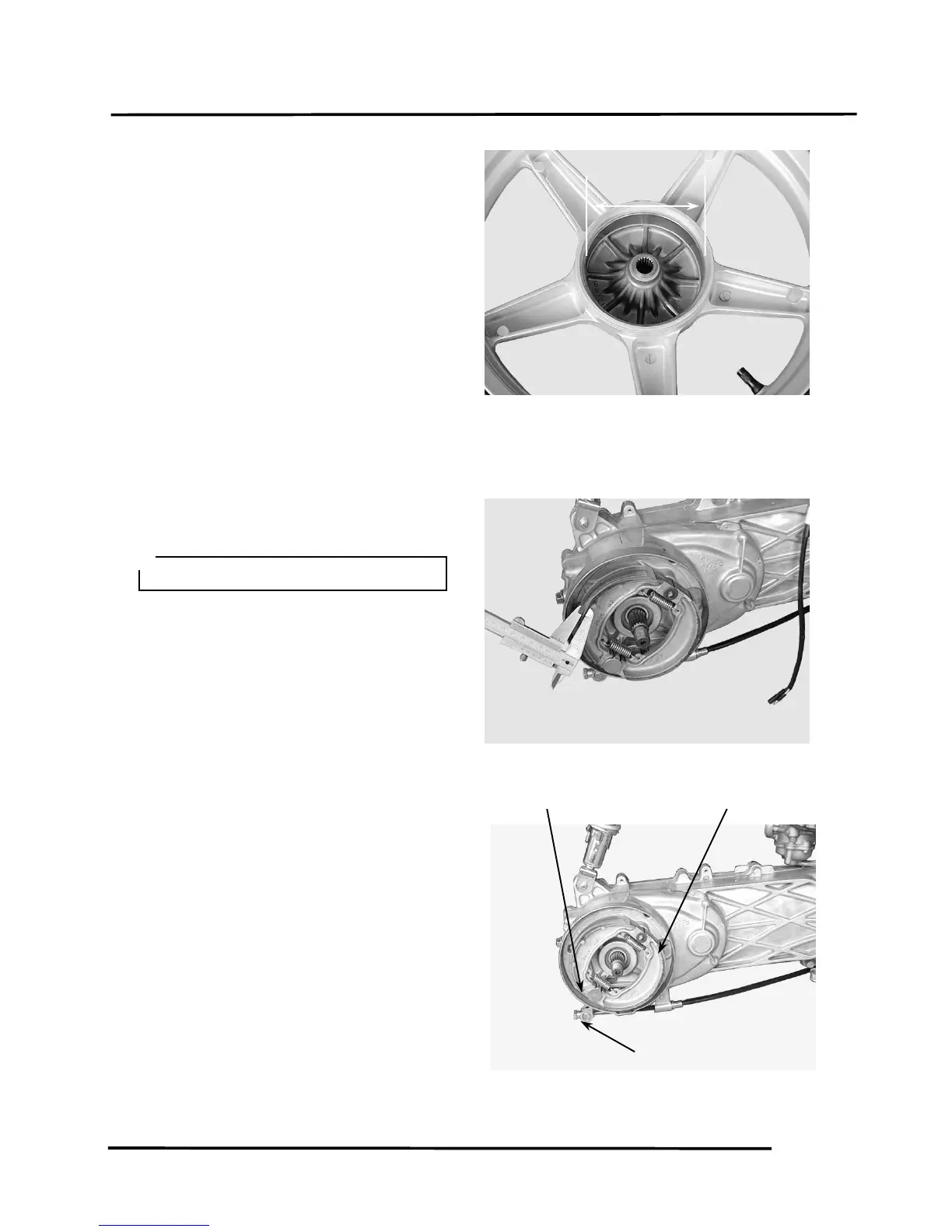

14. REAR WHEEL/REAR BRAKE/REAR
SHOCK ABSORBER
14-4
SUPER8 50 2T
REAR BRAKE
Remove the rear wheel. (
Ö
14-3)
Inspect the rear brake drum.
Measure the rear brake drum I.D.
Service Limit: 95.5mm replace if over
BRAKE LINING INSPECTION
Measure the brake lining thickness.
Service Limit: 2.0mm replace if below
REAR BRAKE DISASSEMBLY
Remove the rear brake adjusting nut and
disconnect the rear brake cable.
Remove the rear brake shoes.
A
djusting Nut
Brake Arm
Brake Shoes
Keep oil or grease off the brake linings.
＊
