13.STEERING HANDLEBAR/FRONT WHEEL/FRONT BRAKE/FRONT SHOCK

ABSORBER/FRONT FORK

13-10

SUPER8 50 2T

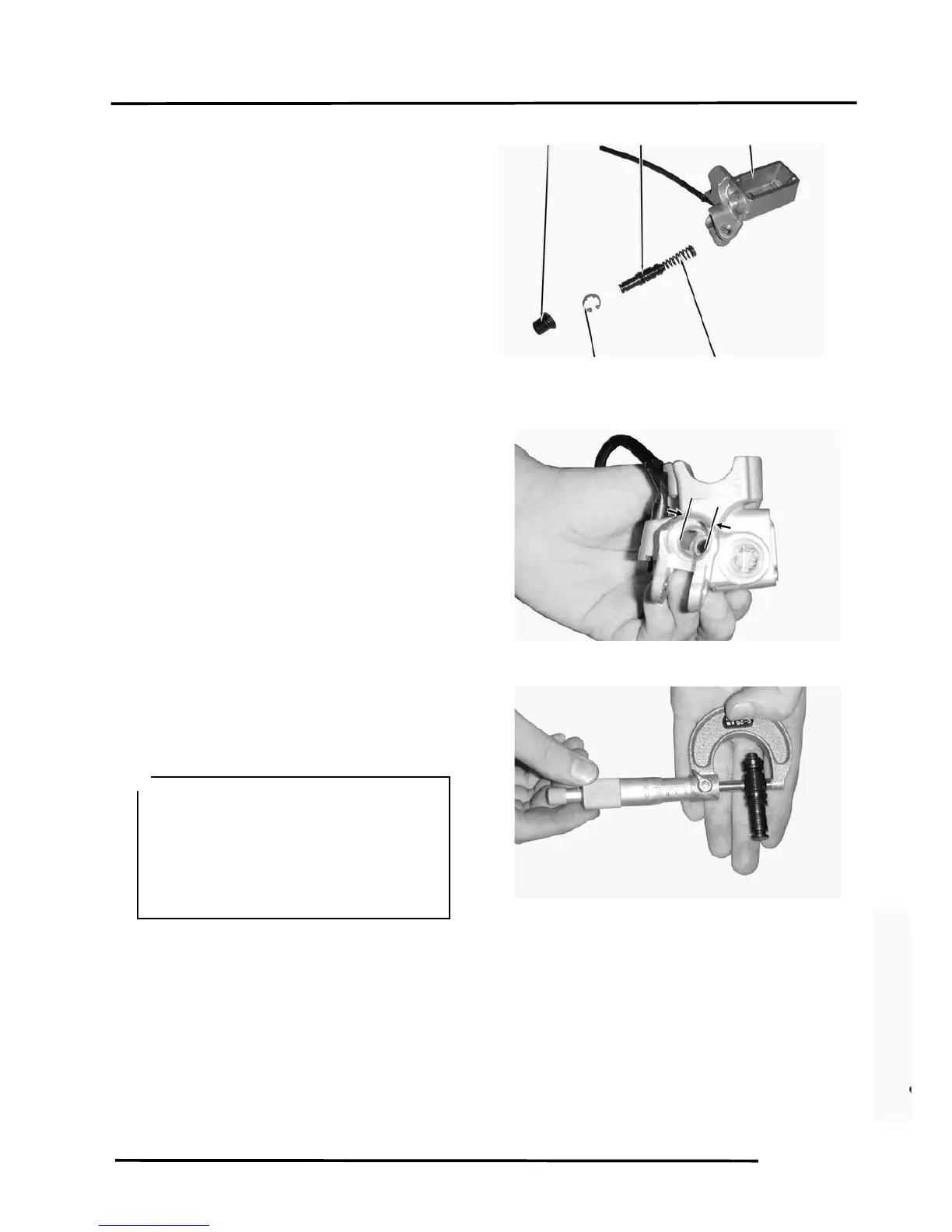

INSPECTION

Measure the brake master cylinder I.D.

Inspect the master cylinder for scratches or

cracks.

Service Limit: 12.75mm

Measure the brake master cylinder piston

O.D.

Service Limit: 12.75mm

Before assembly, inspect the lst and 2nd

rubber cups for wear or damage.

ASSEMBLY

Before assembly, apply brake fluid to all

removed parts.

Install the spring together with the 1st rubber

cup.

Install the main piston, spring and snap ring.

Install the diaphragm.

Install the brake lever.

• During assembly, the main piston and

spring must be installed as a unit

without exchange.

• When assembling the piston, soak the

cups in brake fluid for a while.

• Install the cups with the cup lips facing

the correct direction.

＊

Main

rin

Snap Ring

Master C

linde

Diaphragm
