Kyocera KM-2560

2H0/2HZ
1-5-4

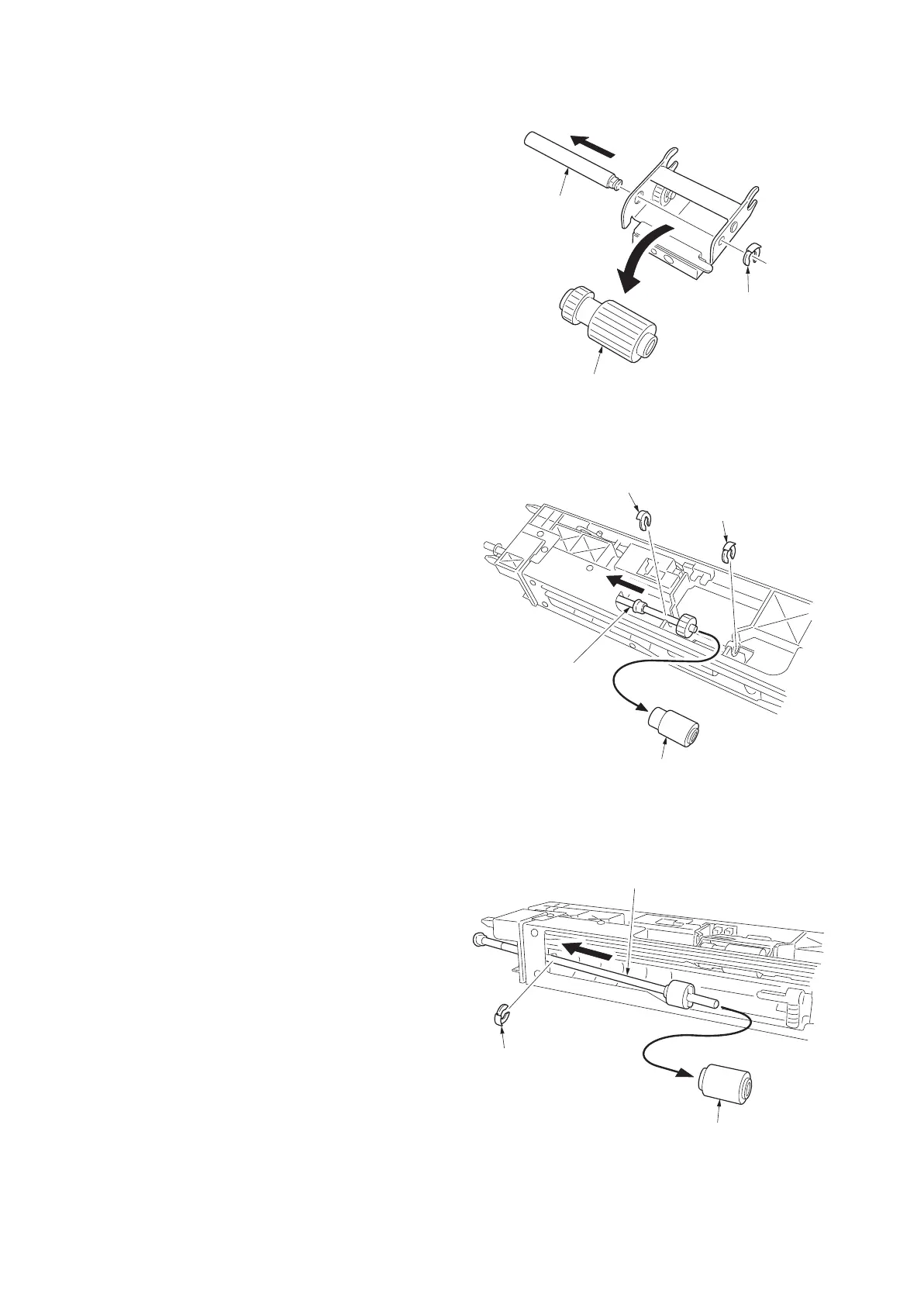

5. Remove the stop ring from the forwarding
pulley retainer.
6. Pull the paper forwarding pulley shaft and
remove the forwarding pulley.
Figure 1-5-5
Removing the paper feed pulley
7. Remove two stop rings from the primary
paper feed unit.
8. Pull the paper feed pulley shaft in the direc-
tion of the arrow and remove the paper feed
pulley.
Figure 1-5-6
Removing the separation pulley
9. Remove the stop ring from the primary
paper feed unit.
10. Pull the separation pulley shaft in the direc-
tion of the arrow and remove the separation
pulley.
Figure 1-5-7
Stop ring
Forwarding
pulley shaft
Forwarding pulley
Stop ring
Stop ring
Paper feed pulley
Paper feed
pulley shaft
Stop ring
Separation pulley
Separation pulley shaft
