1-5-6 Transfer section
(1) Detaching and refitting the transfer roller unit
Follow the procedure below to replace the transfer roller unit.
Procedure
1. Open the left cover 1.
2. Remove the claws of the front and rear
transfer bushes and remove the transfer
roller unit.
3. Replace the transfer roller unit and install
the unit.
The front and rear transfer springs must be
firmly mounted on the holder.

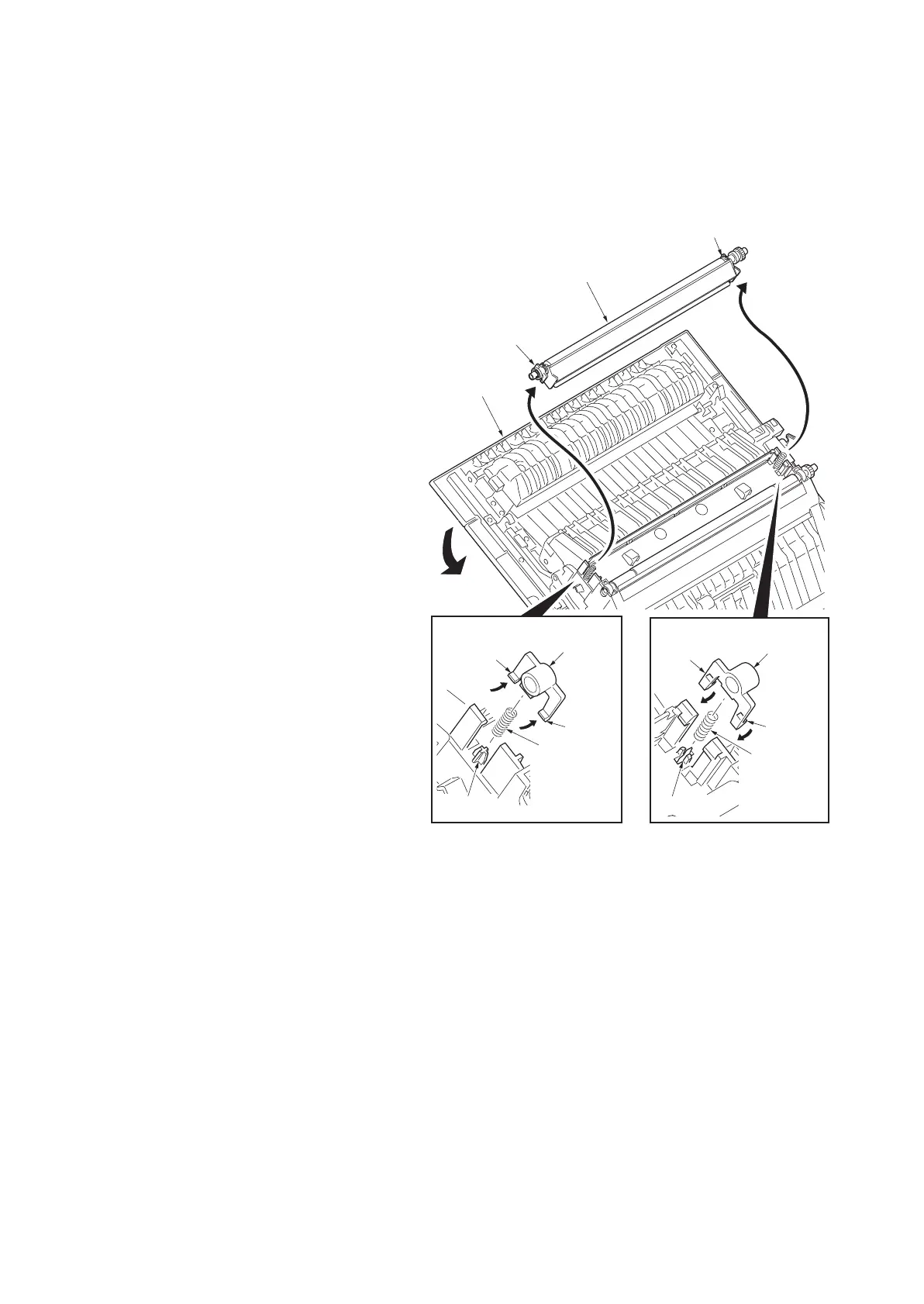

Figure 1-5-74
Claw
Claw
Front transfer
spring
Rear transfer
spring
Front transfer
bush
Front transfer bush
Rear transfer
bush
Rear transfer bush
Transfer roller unit
Left cover 1
Claw
Claw
Holder
Holder
