Kyocera KM-2560

2H0/2HZ
1-5-28
(4) Detaching and refitting the ISU (reference)
Follow the procedure below to replace the ISU.
Procedure
1. Remove two screws and remove the scan-
ner right cover.
2. Remove the platen.

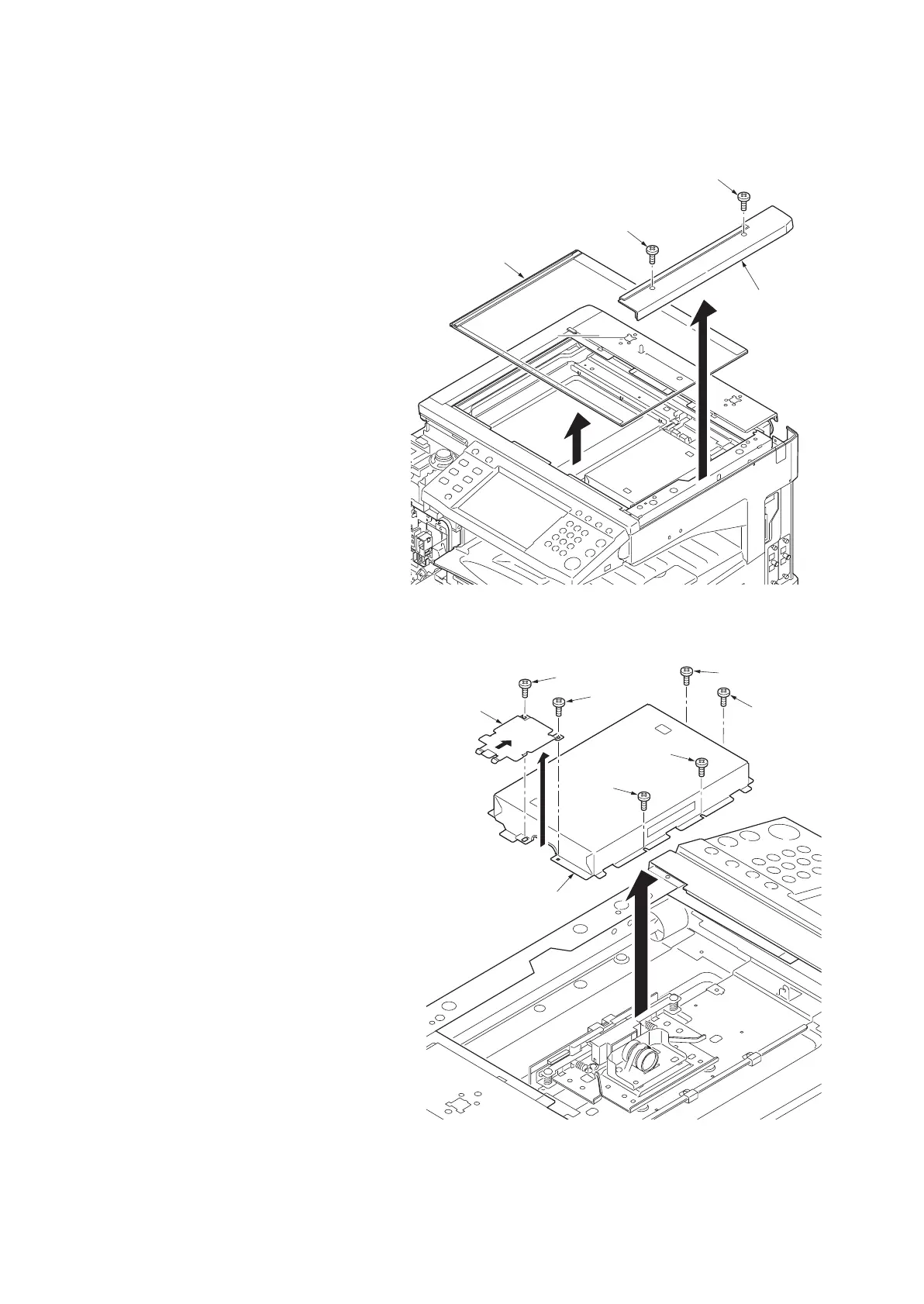

Figure 1-5-51
3. Remove six screws and remove the FFC
ground and ISU cover.
Figure 1-5-52
Screw
Platen
Scanner right cove
r
Screw
FFC ground
ISU cover
Screw
Screw
Screw
Screw
Screw
Screw
