Kyocera KM-2560

2H0/2HZ
2-2-7
(4) Clutches and solenoids

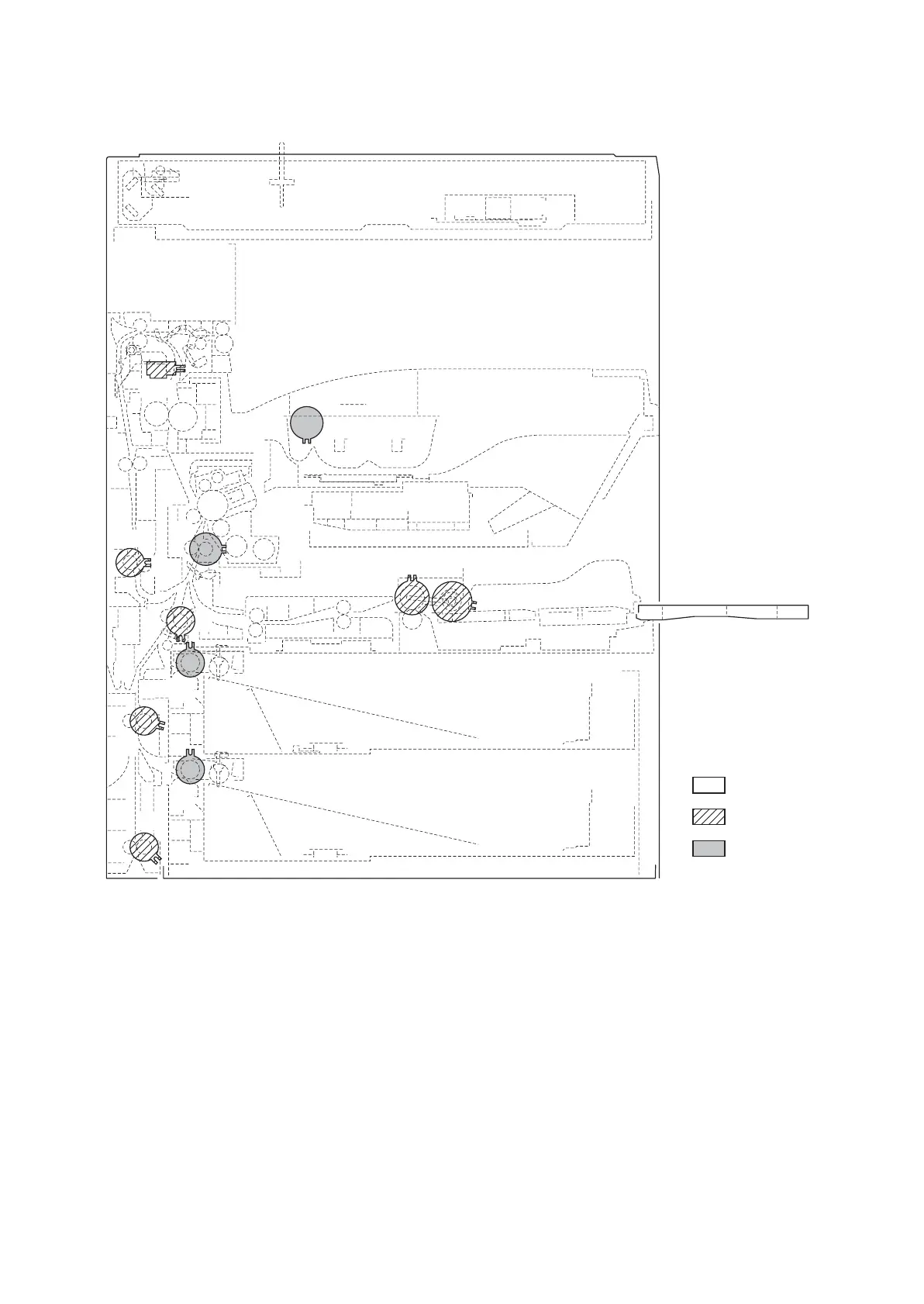

Figure 2-2-4 Clutches and solenoids
1. Upper paper feed clutch (PFCL-U) .............. Primary paper feed from the cassette 1.
2. Lower paper feed clutch (PFCL-L)............... Primary paper feed from the cassette 2.
3. Feed clutch 1 (FCL1) ................................... Controls the drive of feed roller.
4. Feed clutch 2 (FCL2) ................................... Controls the drive of feed roller.
5. Feed clutch 3 (FCL3) ................................... Controls the drive of feed roller.
6. MP paper feed clutch (MPPFCL) ................. Primary paper feed from the MP tray.
7. MP feed clutch (MPFCL).............................. Controls the drive of MP feed roller.
8. Registration clutch (RCL)............................. Secondary paper feed.
9. Duplex feed clutch (DUPFCL)...................... Controls the drive of the duplex feed roller.
10. Toner feed clutch (TFCL) ............................. Replenishes toner.
11. Feedshift solenoid (FSSOL)......................... Operates the feedshift guide.
Machine front
Machine inside
Machine rear
9
8
11
6
7
1
3
4
5
2
10
