Kyocera KM-2560

2H0/2HZ
1-3-22
U034

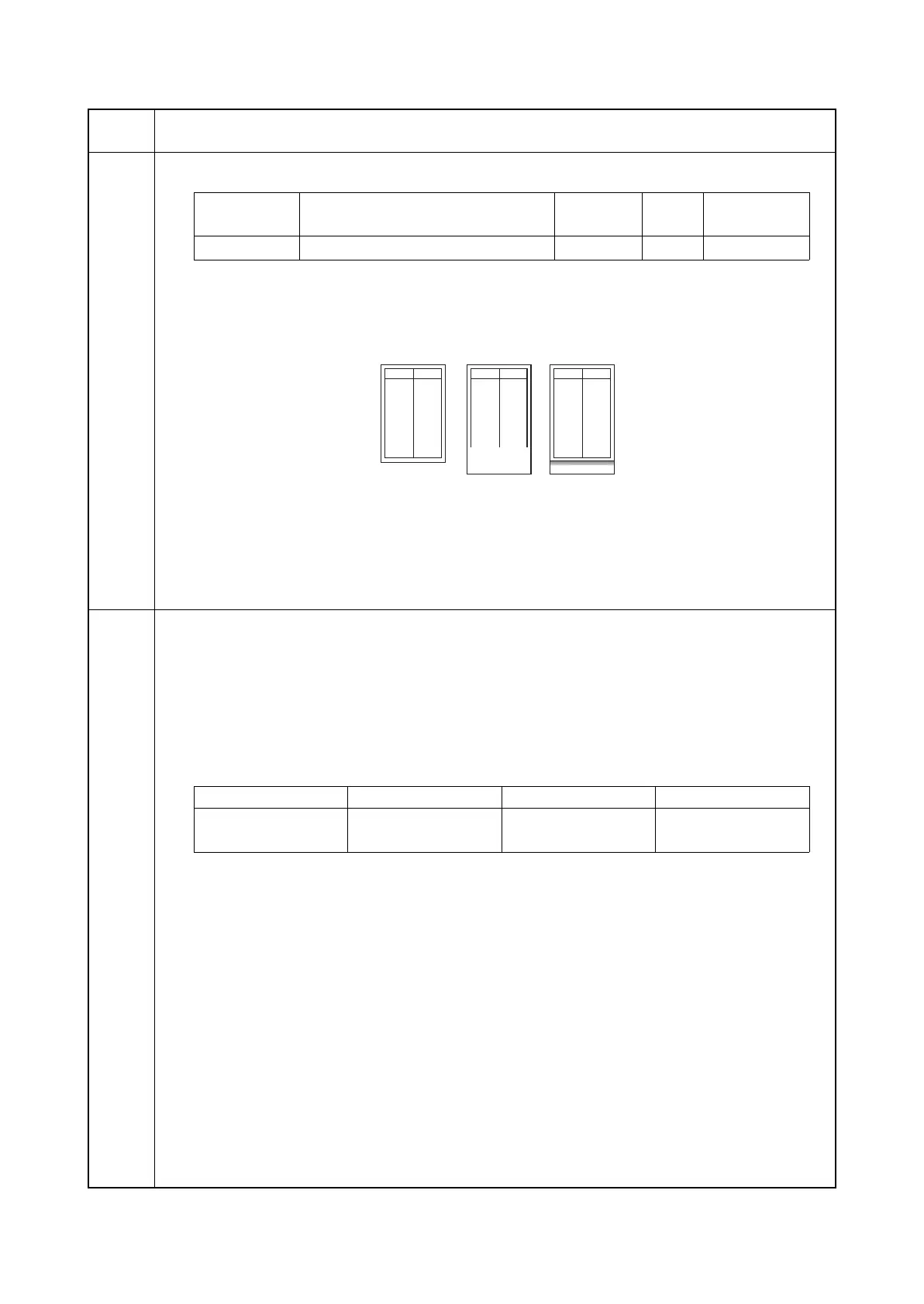

Adjustment: Trailing edge registration adjustment
1. Select [END].
2. Press the system menu key.
3. Press the start key to output a test pattern.
4. Press the system menu key.
5. Change the setting value using the +/- or numeric keys.
For output example 1, decrease the value. For output example 2, increase the value.
Figure 1-3-6
6. Press the start key. The value is set.
Completion
Press the stop key. The screen for selecting a maintenance item No. is displayed.
U035
Setting the printing area for folio paper
Description
Changes the printing area for copying on folio paper.
Purpose
To prevent cropped images on the trailing edge or left/right side of copy paper by setting the actual printing
area for folio paper.
Setting
1. Press the start key.
2. Select the item to be set.
3. Change the setting using the +/- keys.
4. Press the start key. The value is set.
Completion
Press the stop key. The screen for selecting a maintenance item No. is displayed.
Maintenance
item No.
Description
Display Description Setting
range
Initial
setting
Change in
value per step
END Trailing edge registration adjustment -40 to 100 0 1 ms
Correct image
Output
example 1
Output
example 2
Display Setting Setting range Initial setting
LENGTH DATA Length 330 to 356 mm 330
WIDTH DATA Width 200 to 220 mm 210
