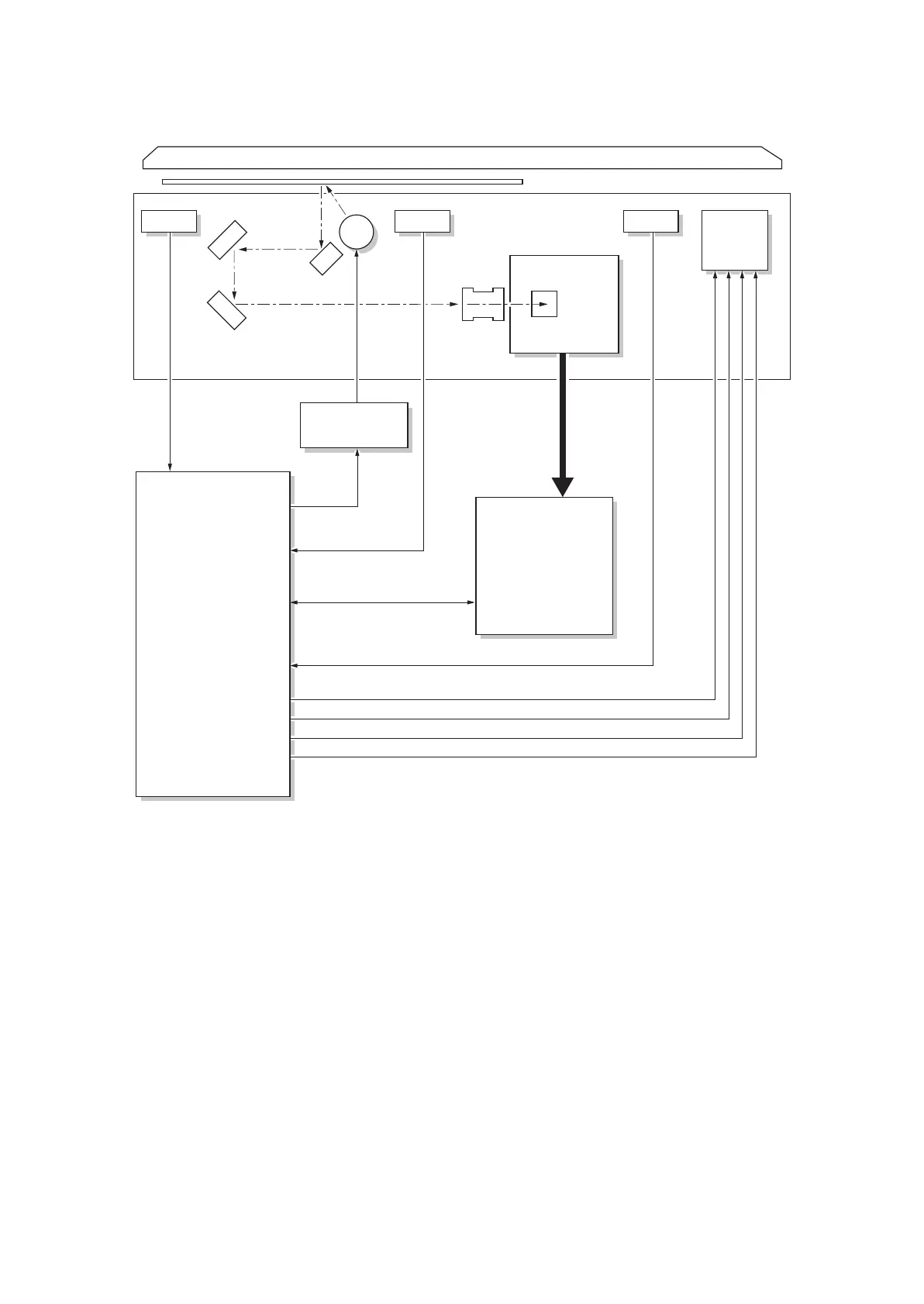

Figure 2-1-8 Image scanner section block diagram
EL
Original
SHPSW
HPSWN
Reading image data
ODSW OSDS
SM
CCDPWB
Lens
YC17-2
OPSWN
Serial communication
data signal
ORGLSWN
YC17-5
YC26
LAMPN
YC16-1,6
YC17-8
ISMDA
YC15-1
ISMDNB
YC15-2
ISMDNA
YC15-3
ISMDB
YC15-4
CCDPWB
CCD image
sensor
SINPWB
EPWB
YC19
YC18
MPWB
