Kyocera KM-2560

2H0/2HZ
2-2-3
(2) Switches and sensors

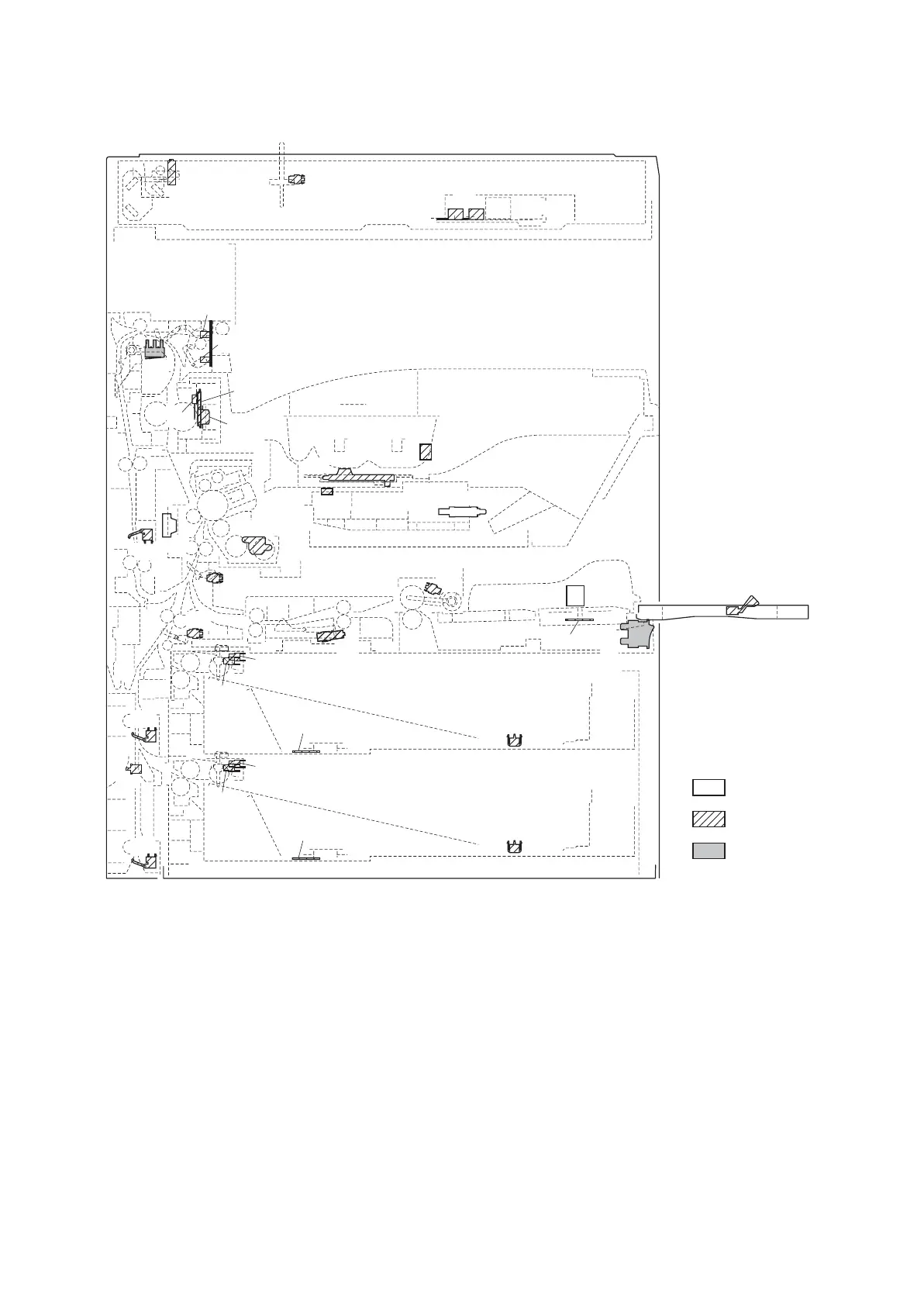

Figure 2-2-2 Switches and sensors
1. Main power switch (MSW) ........................... Turns the AC power on and off.
2. Safety switch 1 (SSW1) ............................... Breaks the safety circuit when the left cover 1 is opened.
3. Safety switch 2 (SSW2) ............................... Breaks the safety circuit when the front cover is opened.
4. Upper paper switch (PSW-U)....................... Detects the presence of paper in the cassette 1.
5. Lower paper switch (PSW-L) ....................... Detects the presence of paper in the cassette 2.
6. Upper lift limit switch (LICSW-U).................. Detects the cassette 1 lift reaching the upper limit.
7. Lower lift limit switch (LICSW-L) .................. Detects the cassette 2 lift reaching the upper limit.
8. Upper paper size length switch
(PLSW-U) .................................................... Detects the length of paper in the cassette 1.
9. Lower paper size length switch
(PLSW-L) ..................................................... Detects the length of paper in the cassette 2.
10. Upper paper size width switch
(PWSW-U) ................................................... Detects the width of paper in the cassette 1.
11. Lower paper size width switch
(PWSW-L).................................................... Detects the width of paper in the cassette 2.
Machine front
Machine inside
Machine rear
1
2
28
32
34
33
30,31
29
19
20
21
3
4
6
15
22
25
26
27
23
24
18
16
17
5
8
12
14
35
13
9
7
10
11
36
