Kyocera KM-2560

2H0/2HZ
1-5-10

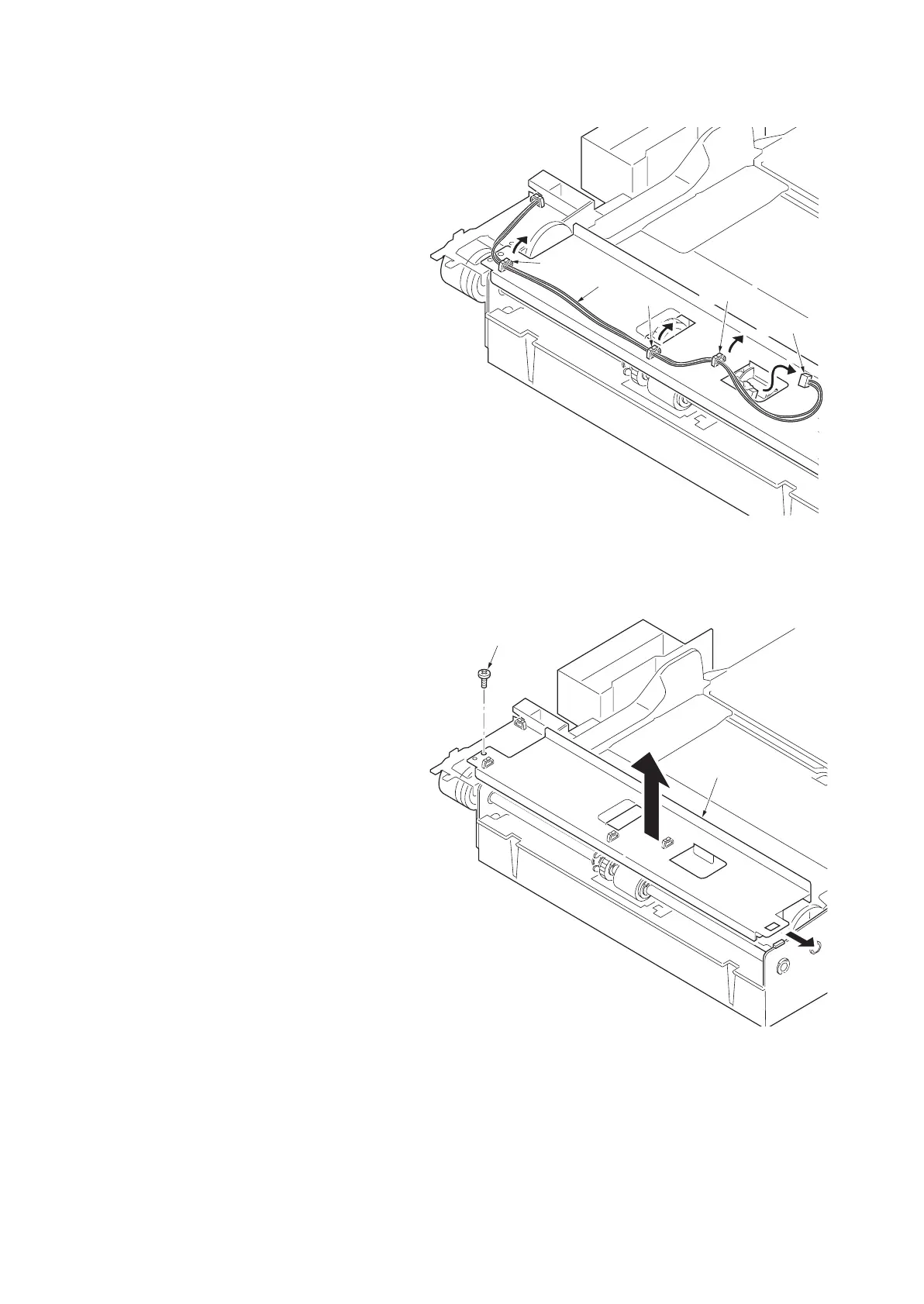

Removing the MP paper feed pulley
15. Remove the connector.
16. Release three clamps and remove the wire.
Figure 1-5-17
17. Remove the screw and remove the MP unit
cover.
Figure 1-5-18
Clamp
Clamp
Wire
Connector
Clamp
Screw
MP unit cover
