(5) Other electrical components

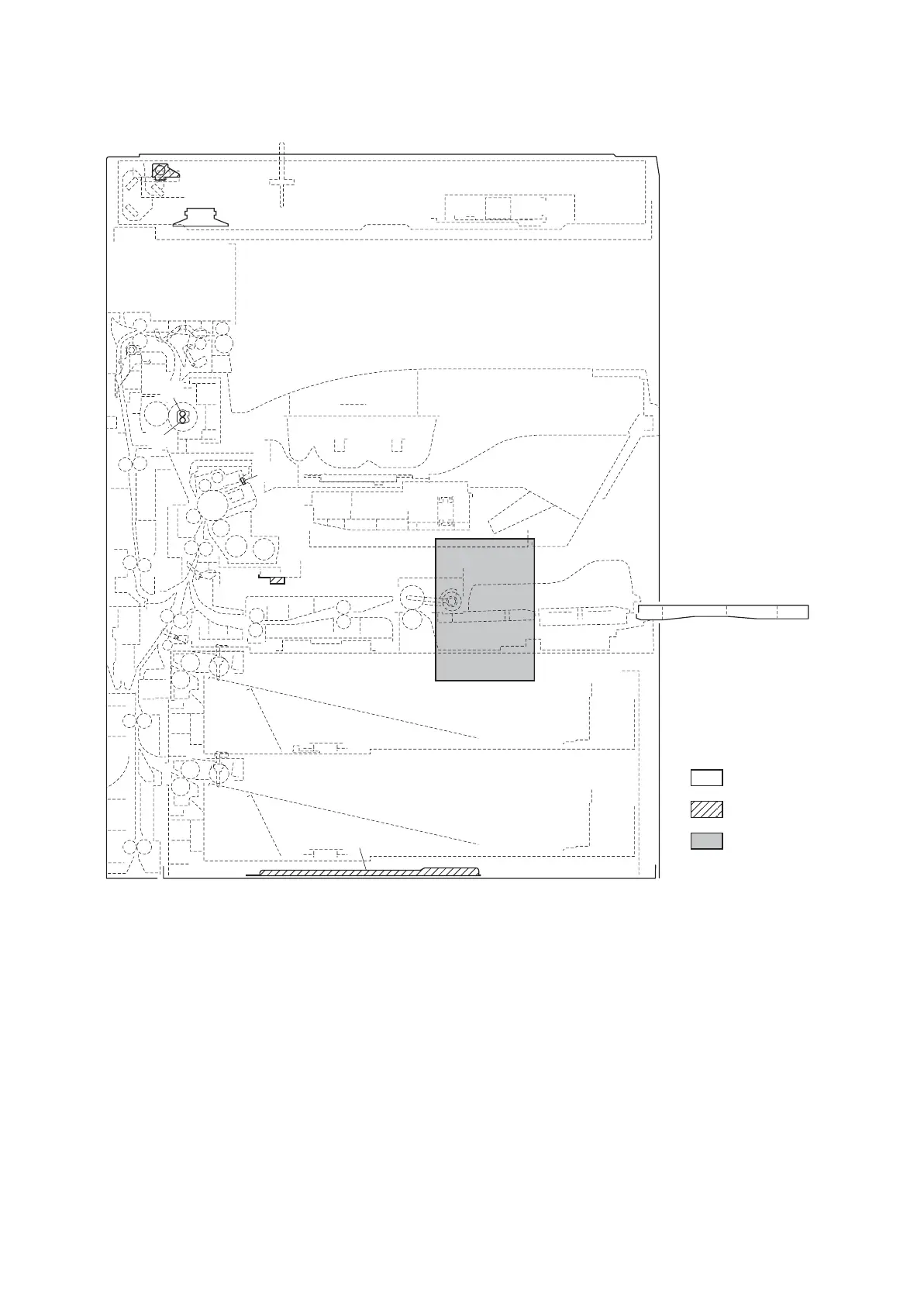

Figure 2-2-5 Other electrical components
1. Exposure lamp (EL) ..................................... Exposes originals.
2. Cleaning lamp (CL) ...................................... Removes residual charge from the drum surface.
3. Hard disk unit (HDD).................................... Storages the image data and information of job accounting mode.
4. Fuser heater M (FH-M) ................................ Heats the heat roller.
5. Fuser heater S (FH-S) ................................. Heats the heat roller.
6. Drum heater (DH) ........................................ Dehumidifies the image formation section.
7. Cassette heater (CH) ................................... Dehumidifies the cassette section.
8. Speaker (SP)................................................ Outputs buzzer, monitoring and speaker sounds.
Machine front
Machine inside
Machine rear
5
4
1
3
2
8
6
7
