Kyocera KM-2560

2H0/2HZ-1
1-6-2
1-6-3 Remarks on engine PWB replacement
When replacing the engine PWB, remove the EEPROM from the engine PWB that has been removed and then reattach it
to the new engine PWB.

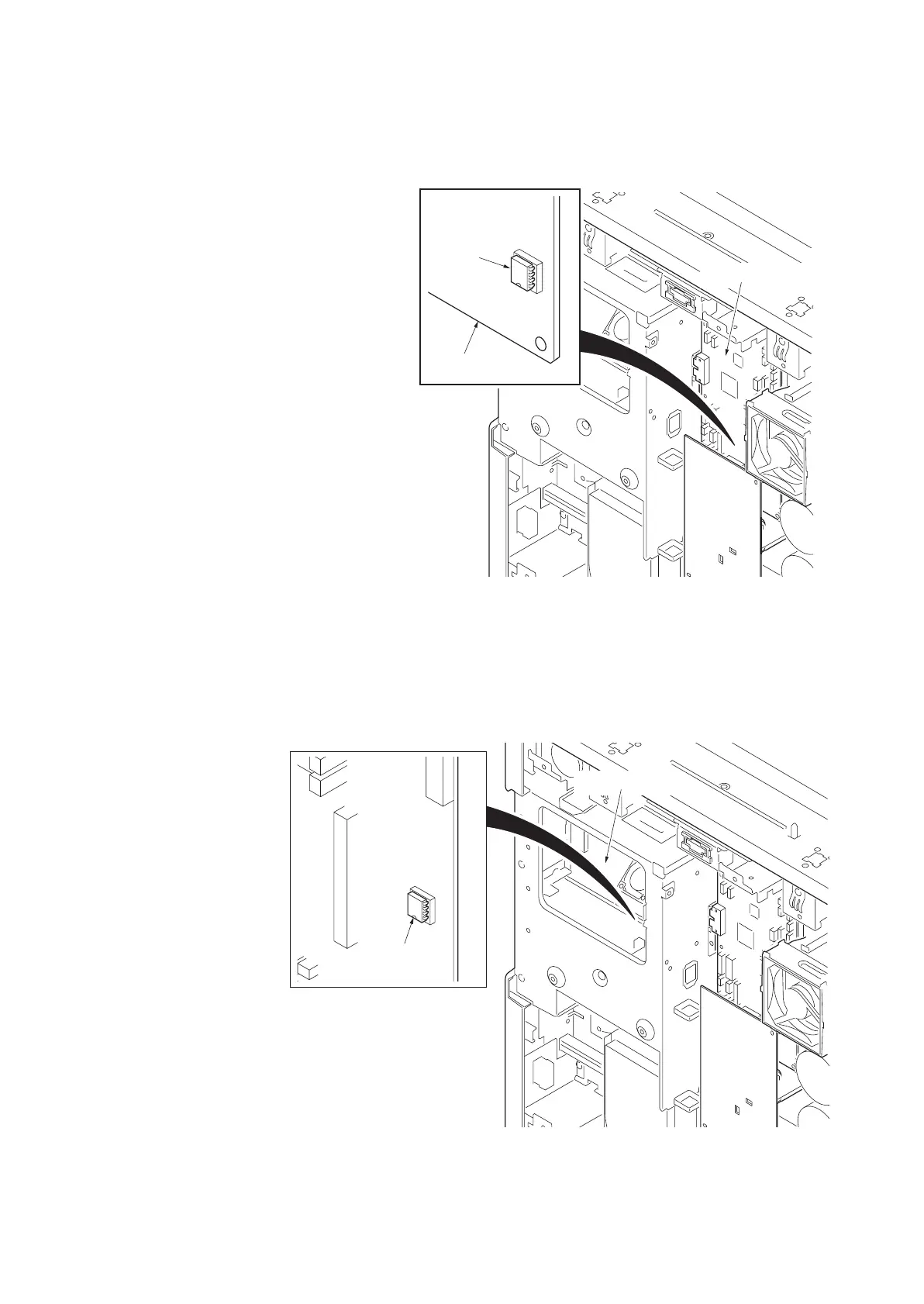

Figure 1-6-2
1-6-4 Remarks on main PWB replacement
When replacing the main PWB, remove the EEPROM from the main PWB that has been removed and then reattach it to
the new main PWB.
Figure 1-6-3
Engine PWB
Engine PWB
EEPROM
(U3)
Main PWB
EEPROM
(YS5)
