(3) Detaching and refitting the hard disk
Follow the procedure below to replace the hard disk.
Procedure
1. Remove eleven screws and remove the rear
cover.

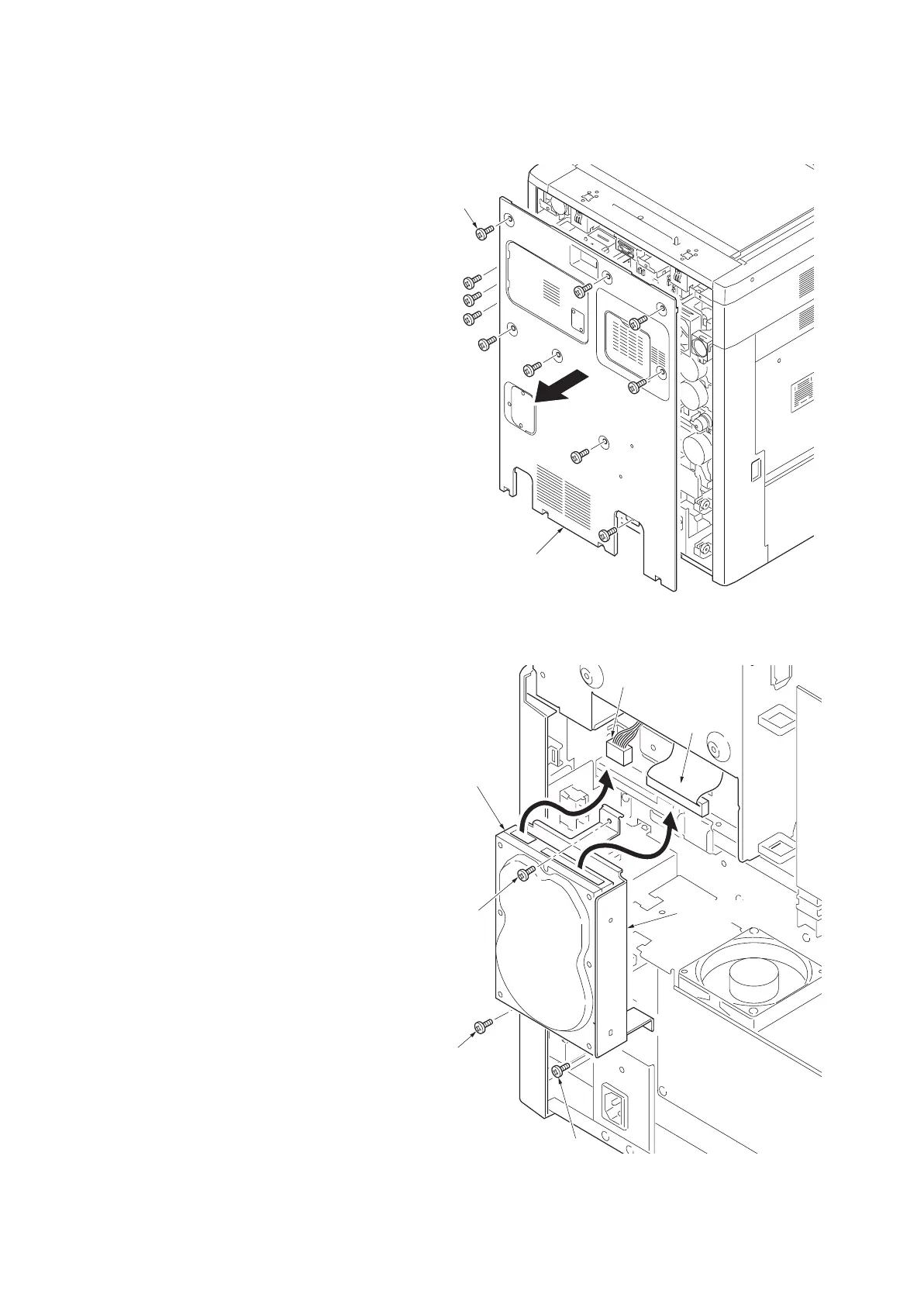

Figure 1-5-106
2. Remove two connectors.
3. Remove three screws and remove the HDD
mount.
Figure 1-5-107
Screws
(eleven)
Rear cover
Screw
Screw
Screw
Connector
Connector
HDD mount
Hard disk
