(2) MP tray paper feed section
The MP tray can be hold up to 200 sheets of paper at one time. Paper is fed from the MP tray by the rotation of the MP for-
warding pulley and MP paper feed pulley. Also during paper feed, the MP separation pulley prevents multiple sheets from
being fed at one time by the torque limiter.

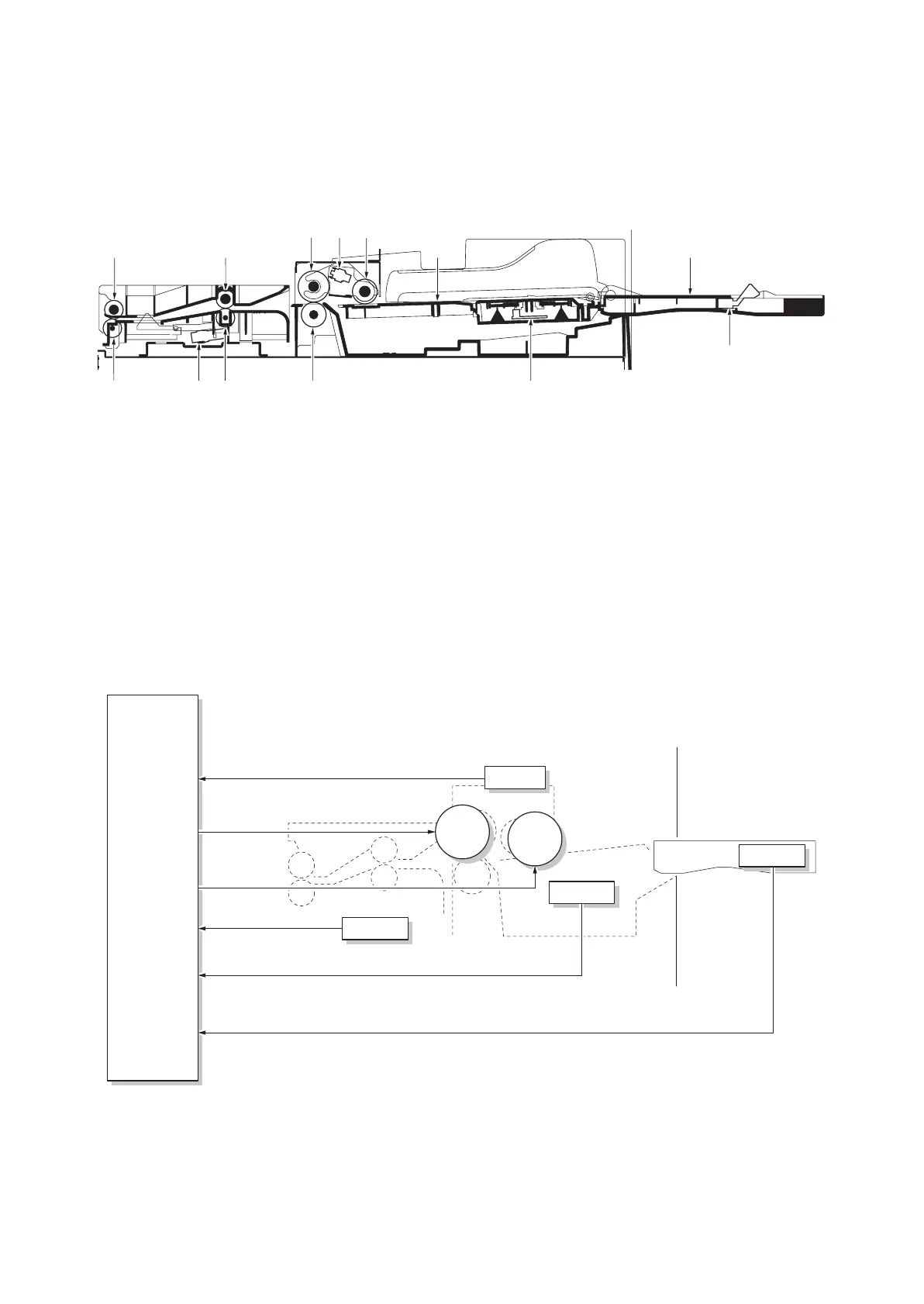

Figure 2-1-3 MP tray paper feed section
Figure 2-1-4 MP tray paper feed section block diagram
7
410
9
8116 5 13
12
3
1
2
(1) MP tray
(2) MP lift plate
(3) MP forwarding pulley
(4) MP paper feed pulley
(5) MP separation pulley
(6) MP feed pulley
(7) MP feed roller 1
(8) MP feed pulley
(9) MP feed roller 2
(10) MP paper switch (MPPSW)
(11) MP feed switch (MPFSW)
(12) MP paper size length switch
(MPPLSW)
(13) MP paper size width switch
(MPPWSW)
MPPLSW
MPPWSW
MPPSW
MPFSW
MPPFCL
MPFCL
YC7-6
MPFPAPS
YC7-11
MPFFECL
YC7-9
MPFPAPCL
YC22-22
BYPFEEDSW
YC7-1,2,3
MPFSIZE0,1,2
YC7-13
MPFLENGTH
EPWB
