Kyocera KM-2560

2H0/2HZ
1-5-33

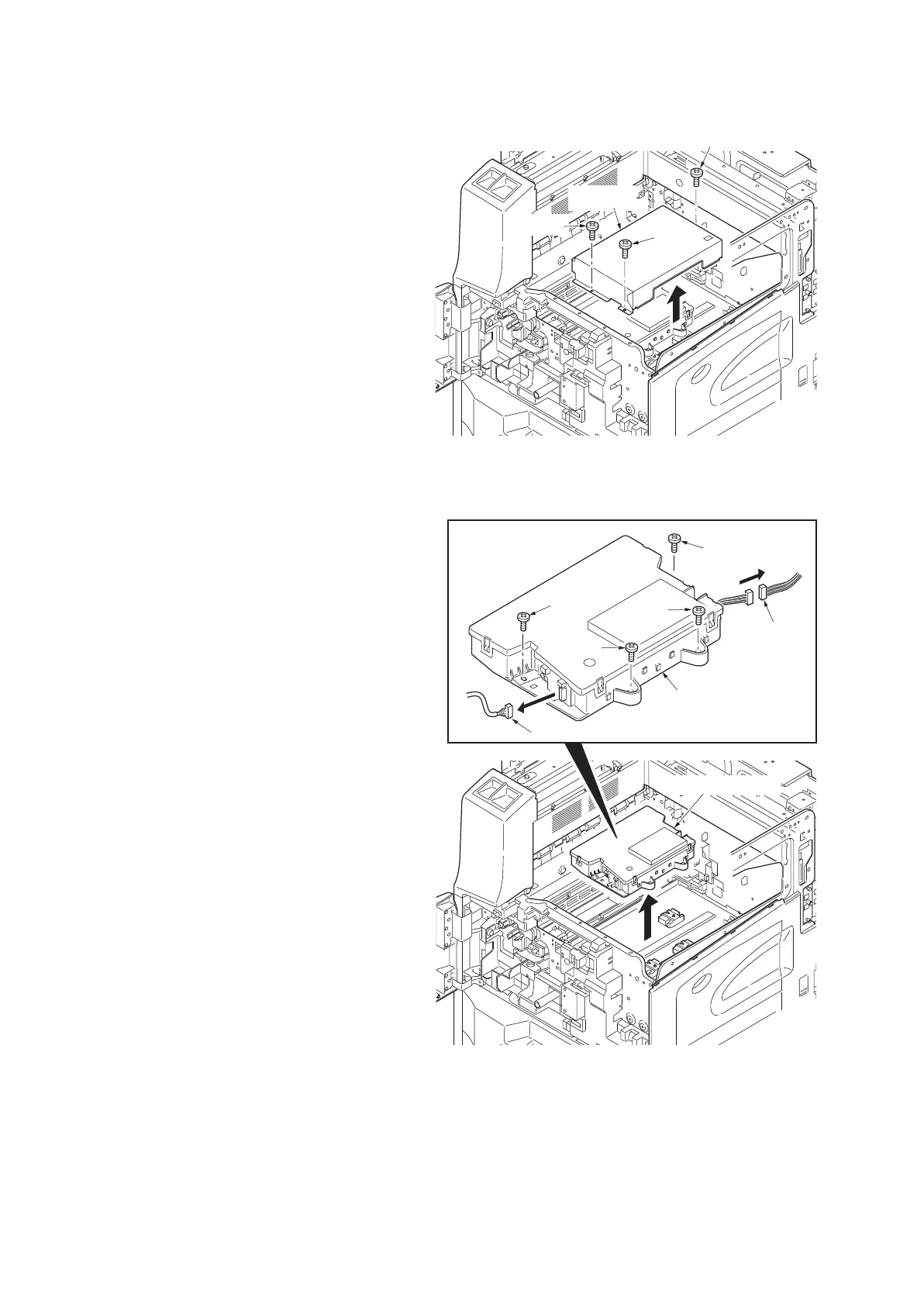

13. Remove three screws and remove the LSU
cover.
Figure 1-5-60
14. Remove two connectors.
15. Remove four screws and remove the laser
scanner unit.
16. Replace the laser scanner unit and install
the unit.
17. Refit all the removed parts.
Figure 1-5-61
Screw
Screw
LSU cover
Screw
Screw
Screw
Connector
Laser scanner unit
Connector
Screw
Screw
Laser scanner unit
