9. Remove the claw and remove the inner
cover lid.
10. Remove three connectors.
11. Pull the developing lever.

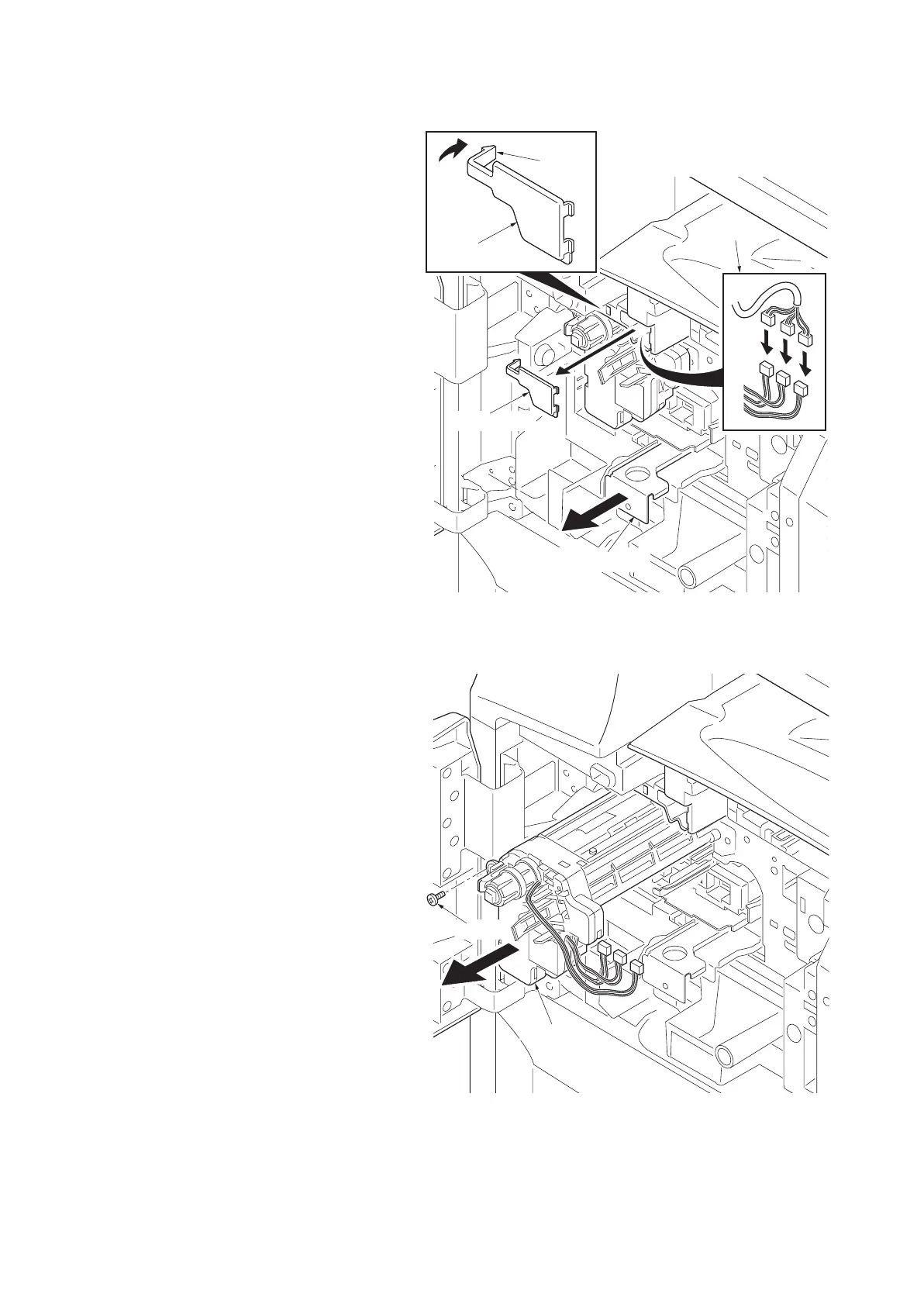

Figure 1-5-66
12. Remove the screw and remove the drum
unit.
13. Replace the drum unit and install the unit.
Figure 1-5-67
Inner cover lid
Inner cover lid
Claw
Developing lever
Connectors
Drum unit
Screw
