Kyocera KM-2560

2H0/2HZ-1
1-5-53

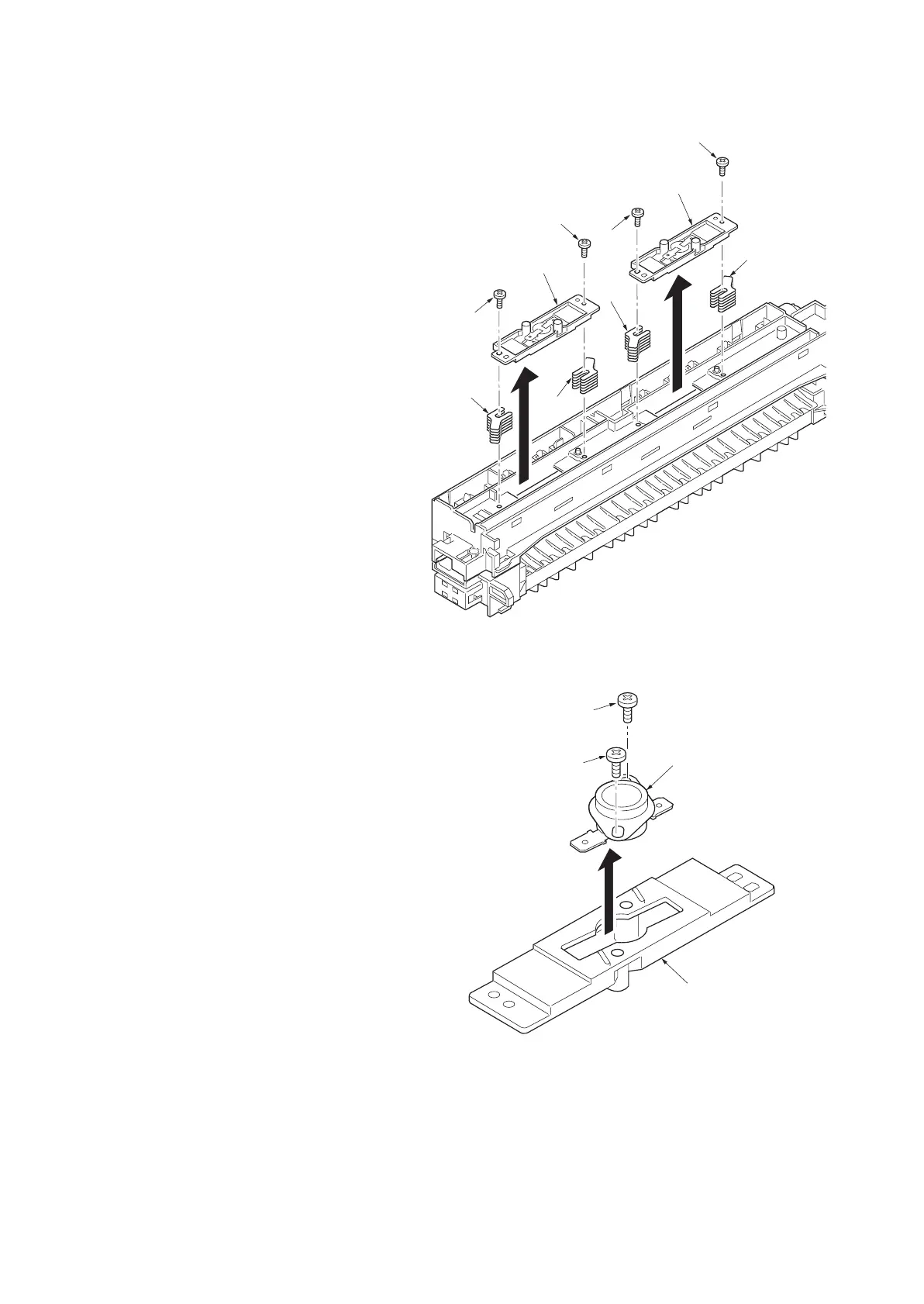

4. Remove each two screws and remove two
fuser thermostat holders.
Figure 1-5-96
5. Remove two screws and remove fuser ther-
mostats 1 and 2.
6. Replace the fuser thermostats 1 and 2 and
install the thermostats.
7. Refit all the removed parts.
Figure 1-5-97
Screw
Spacers
Fuser
thermostat
holder
Fuser
thermostat
holder
Spacers
Spacers
Spacers
Screw
Screw
Screw
Screw
Screw
Fuser thermostat
Fuser thermostat holde
r
