4. Unhook four hooks of the duplex unit
from the right cover.
5. Remove two screws from the duplex
unit.

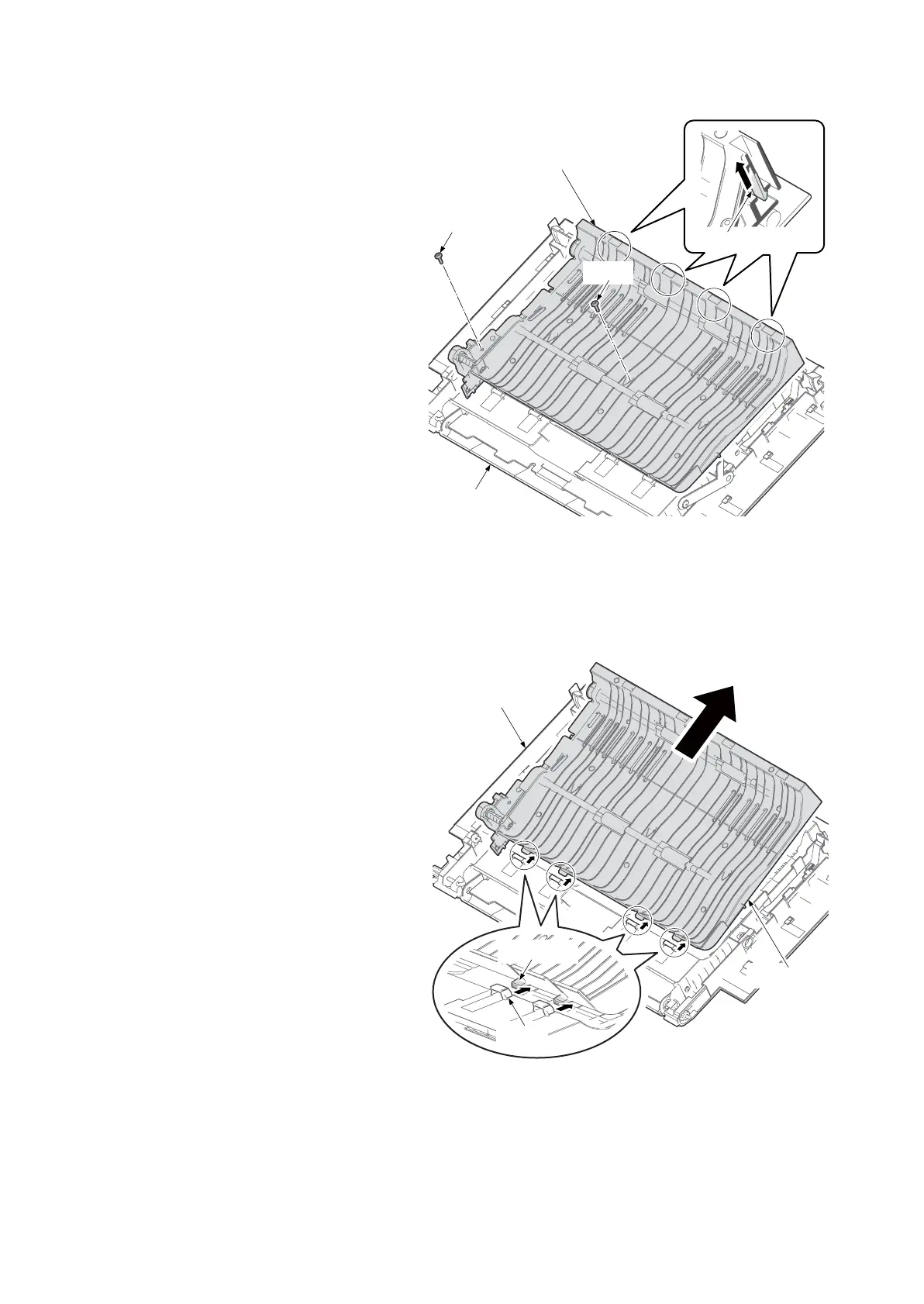

Figure 1-5-91
6. Pull out the projection of the duplex unit
from four hooks of the right cover.
7. Check or replace the duplex unit and
refit all the removed parts.
Figure 1-5-92
Duplex unit
Screw
Screw
Right cover
Hook
Duplex unit
Projection
Hook
Right cover
