Kyocera TASKalfa 2201 - Detaching and Refitting the Image Scanner Unit

2NC/2NF/2NG/2NN/3P7/3P8/3P9
1-5-21
(1-2) Detaching and refitting the image scanner unit
Procedure
1. Remove seven screws.
2. Remove the rear cover by pulling
upward and releaseing three hooks.

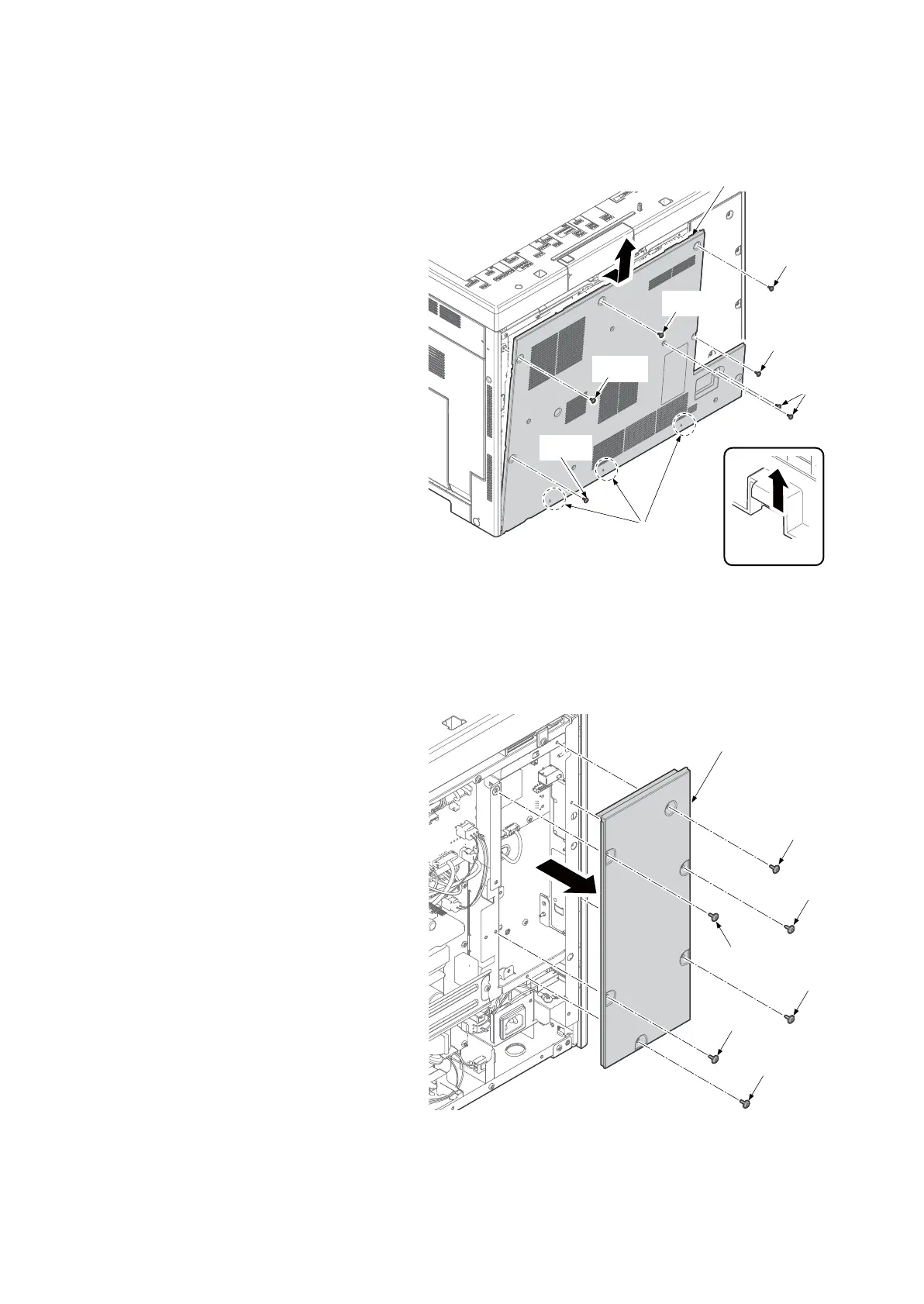

Figure 1-5-33
3. Remove six screws.
4. Remove the rear sub cover.
Figure 1-5-34
Hook detail
Screw
Screw
Screws
Screw
Screw
Screw
Rear cover
Hooks
Screw
Screw
Screw
Screw
Screw
Screw
Rear sub cover
