Kyocera TASKalfa 2201 - Detaching and Refitting the DP Paper Feed Rollere and DP Separation Pulley

2NC/2NF/2NG/2NN/3P7/3P8/3P9
1-5-87
(1-2) Detaching and refitting the DP paper feed roller and DP separation pulley
Procedure
1. Open the DP top cover.

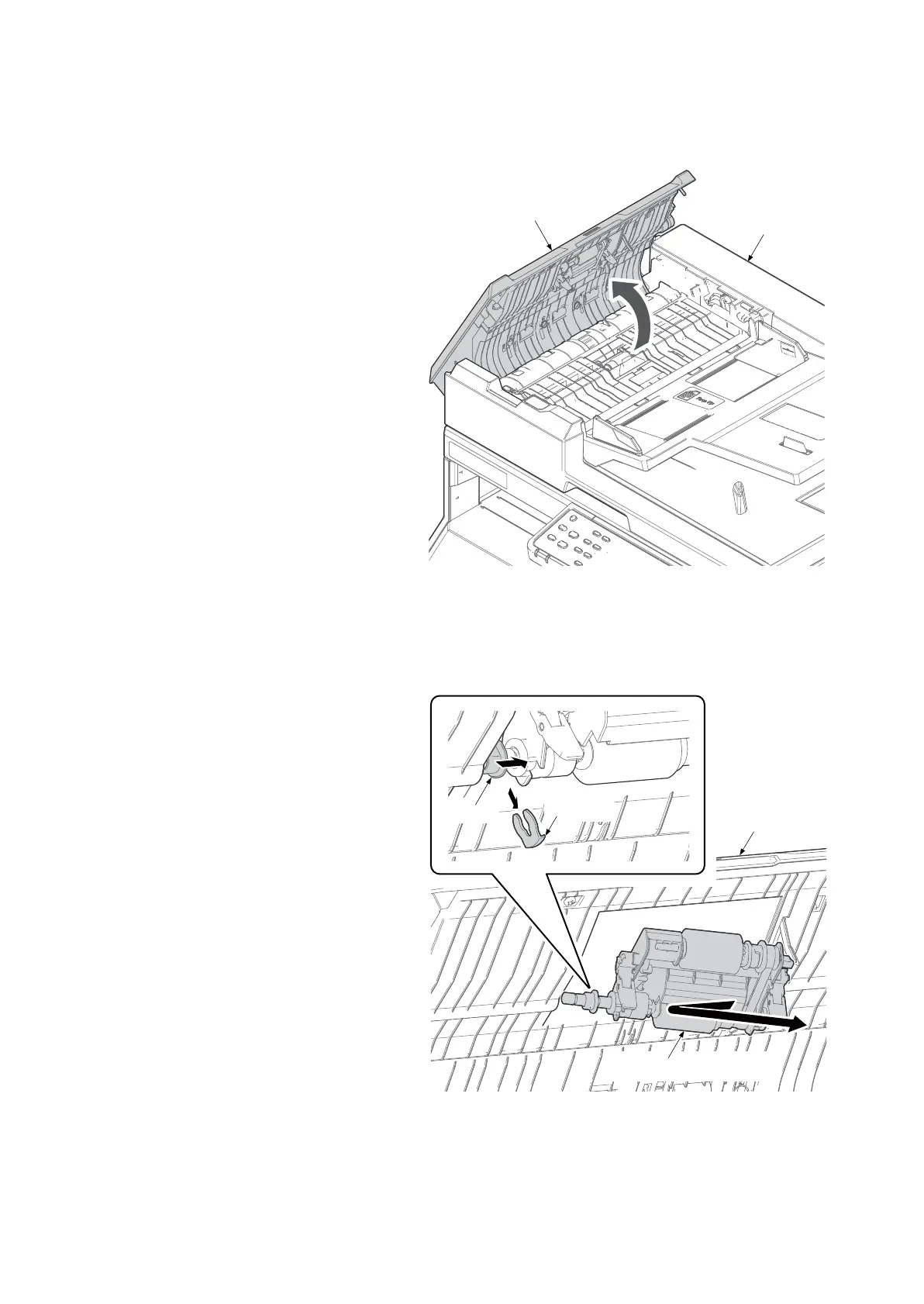

Figure 1-5-153
2. Remove the stop ring and then slide the
bushing.
3. Remove the paper feed assembly by
sliding it from the DP top cover.
Figure 1-5-154
DP
DP top cover
Stop ring
Bushing
Paper feed assembly
DP top cover
