Kyocera TASKalfa 2201 - Detaching and Refitting the PWB (PFMPWB)

2NC/2NF/2NG/2NN/3P7/3P8/3P9
2-2-42

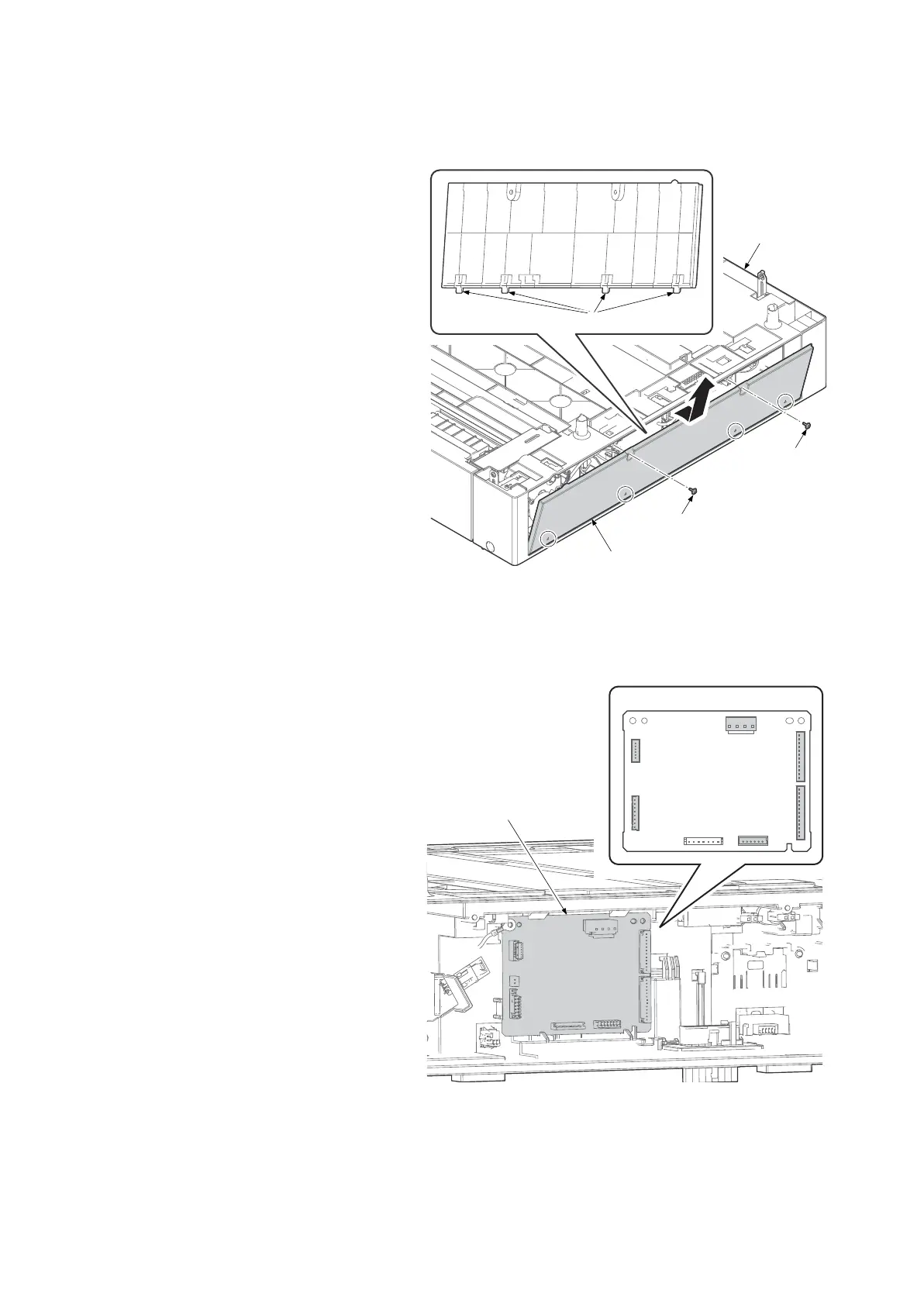

(4) Detaching and refitting the PWB. (PFMPWB)
Procedure
1. Remove two screws.
2. Remove the PF rear cover by pulling
Forward and then upward.
Figure 2-2-47
3. Remove all connector from PF main
PWB.
Figure 2-2-48
Screw
Screw
Projection
PF rear cover
PF unit
PF main PWB connectors
YC3
YC4
YC5
YC6
YC2
YC1
PF main PWB
