Kyocera TASKalfa 2201 - Detaching and Refitting the Duplex Conveying Unit

2NC/2NF/2NG/2NN/3P7/3P8/3P9
1-5-53
(1) Detaching and refitting the duplex conveying unit
Procedure
1. Open the right cover.

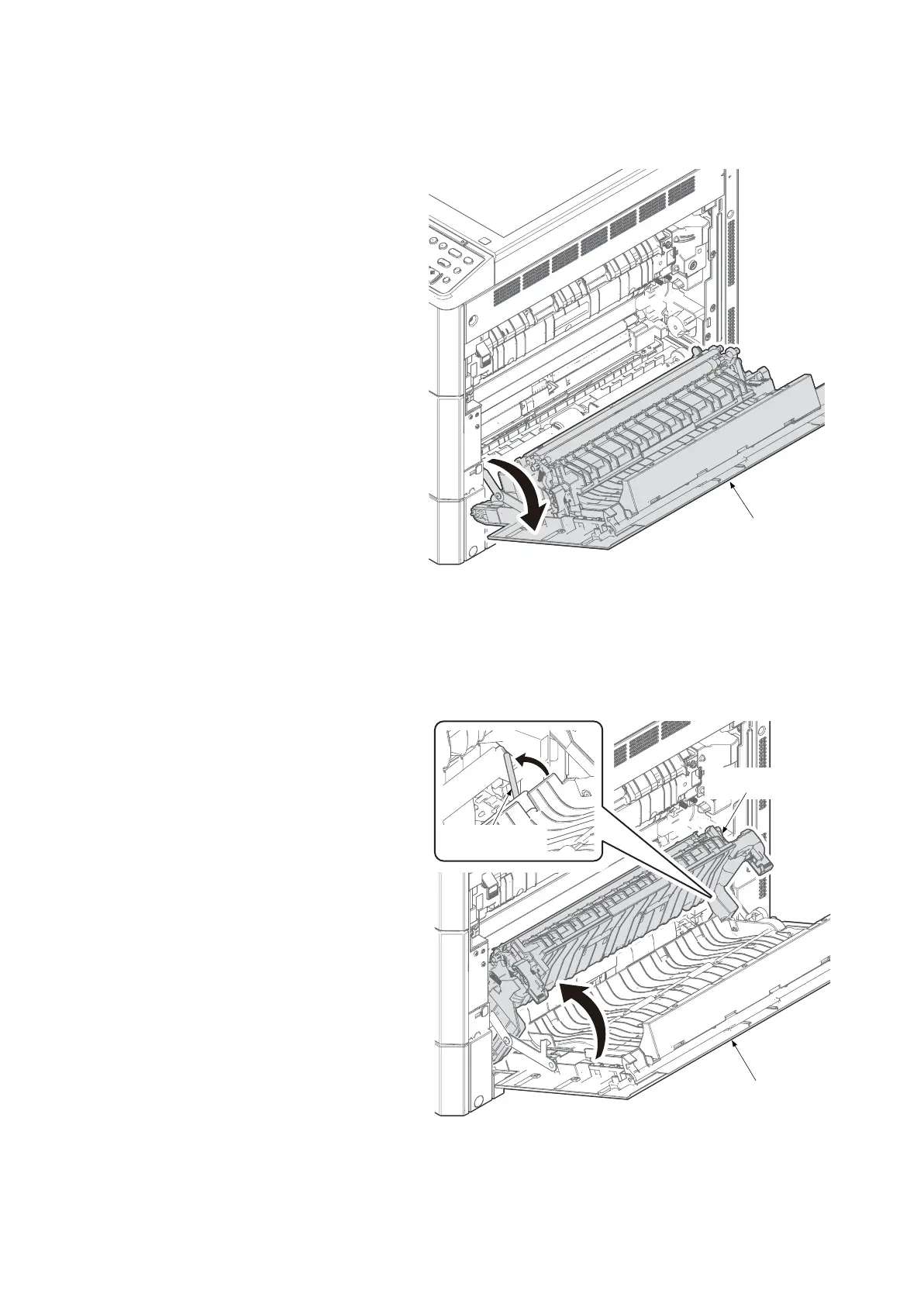

Figure 1-5-89
2. Close the conveying unit.
3. Raise the fulcrum axis up.
Figure 1-5-90
Right cover
Conveying unit
Right cover
Fulcrum axis
