2NC/2NF/2NG/2NN/3P7/3P8/3P9
1-5-89
7. Remove the retard guide.
8. Pull up the retard holder and remove it.
9. Check or replace the DP feedroller, the
pickup roller and the retard roller and
refit all the removed parts.
*: Check whether the pressure spring is
contained in the projection.

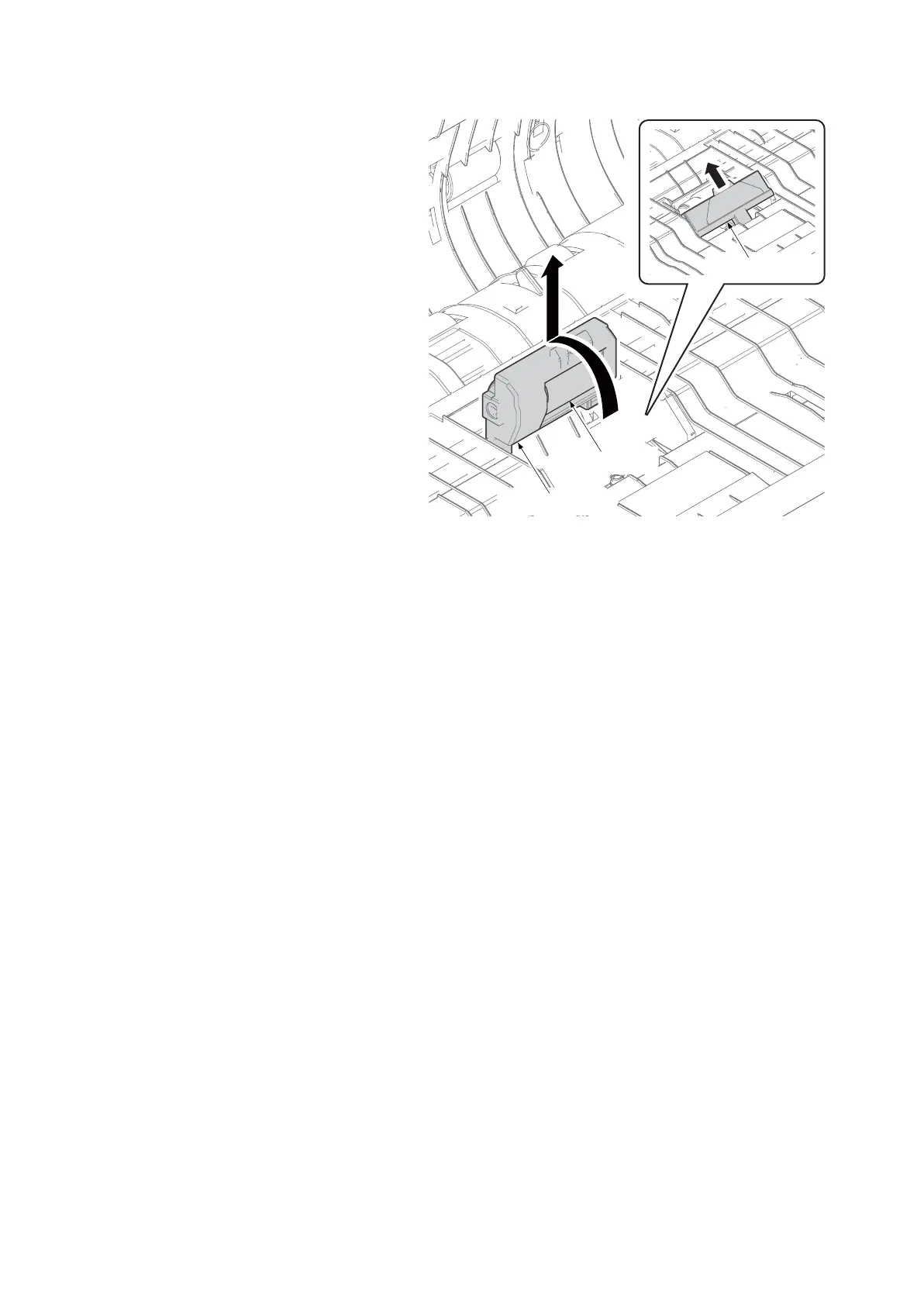

Figure 1-5-157
Retard guide
Retard holder
Retard roller
To Next Page
