Kyocera TASKalfa 2201 - Page 413

2NC/2NF/2NG/2NN/3P7/3P8/3P9
2-2-23
21. Remove a screw.
22. Remove it forward after raising a little
the front side of the developer rail
assembly.

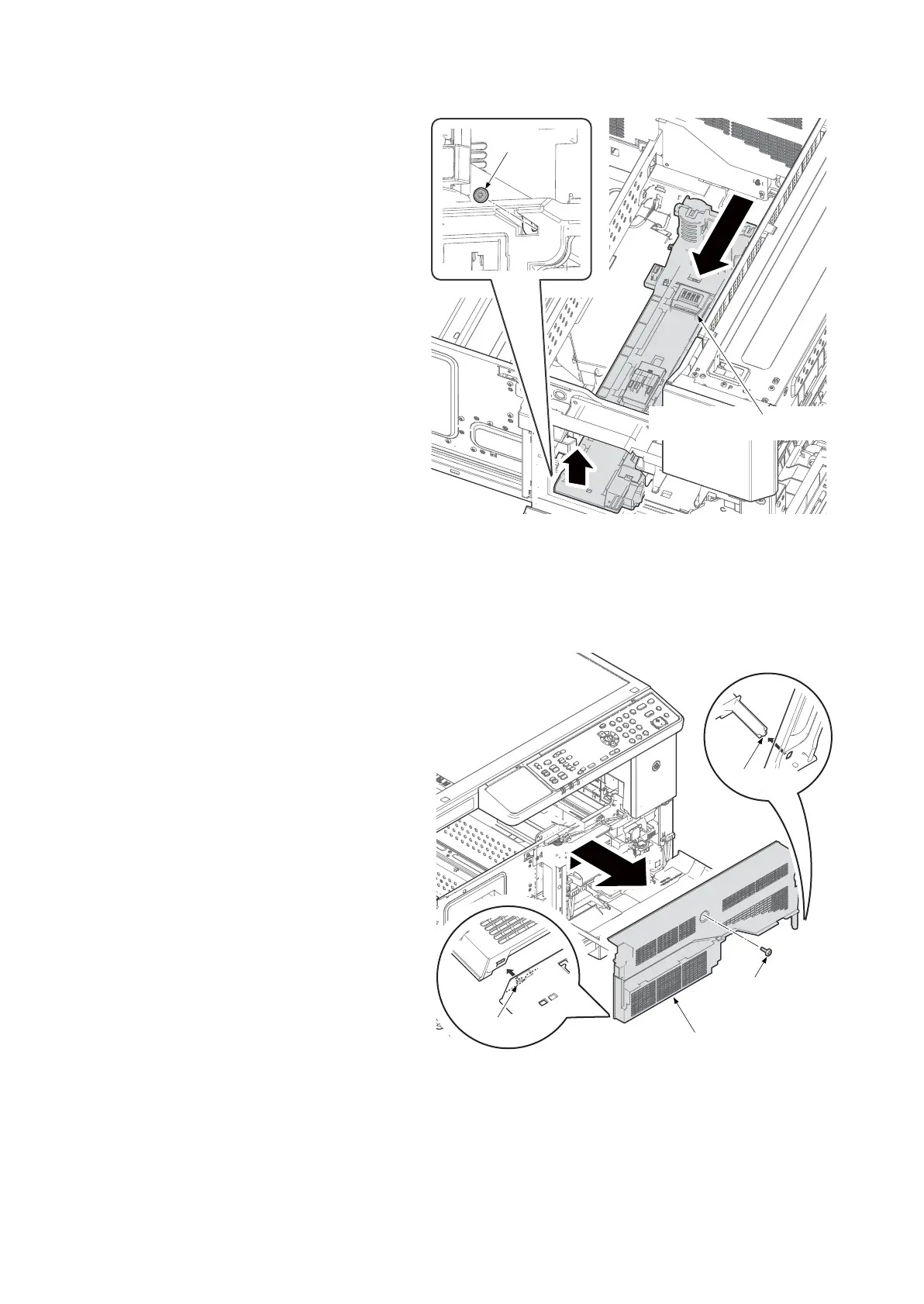

Figure 2-2-23
1. Remove the screw.
2. Remove the exit rear cover forward with
releasing two projections by lifting it up.
Figure 2-2-24
Screw
Container rail assembly
Screw
Exit rear cover
Projection
Projection
