4. Remove all connectors from the power
source PWB.

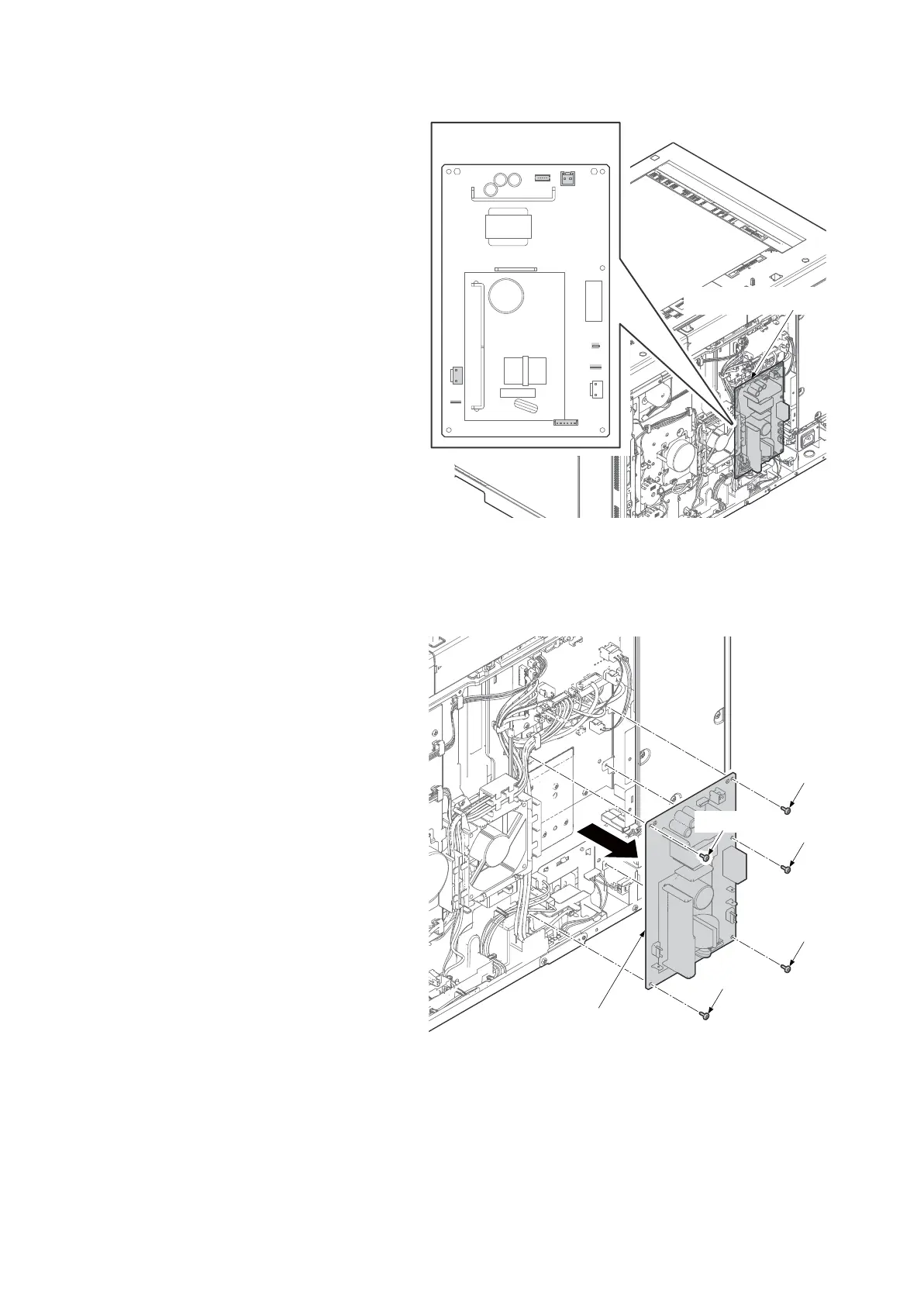

Figure 2-2-30
5. Remove five screws.
6. Remove the power source PWB.
7. Check or replace the power sorce PWB
and refit all the removed parts.
Figure 2-2-31
Power source PWB
connectors
TB1
TB5
TB2
CN4
CN1
CN2
CN3
Power source PWB
Screw
Screw
Screw
Screw
Screw
Power source PWB
