5. Remove five connectors from the DP
main PWB.

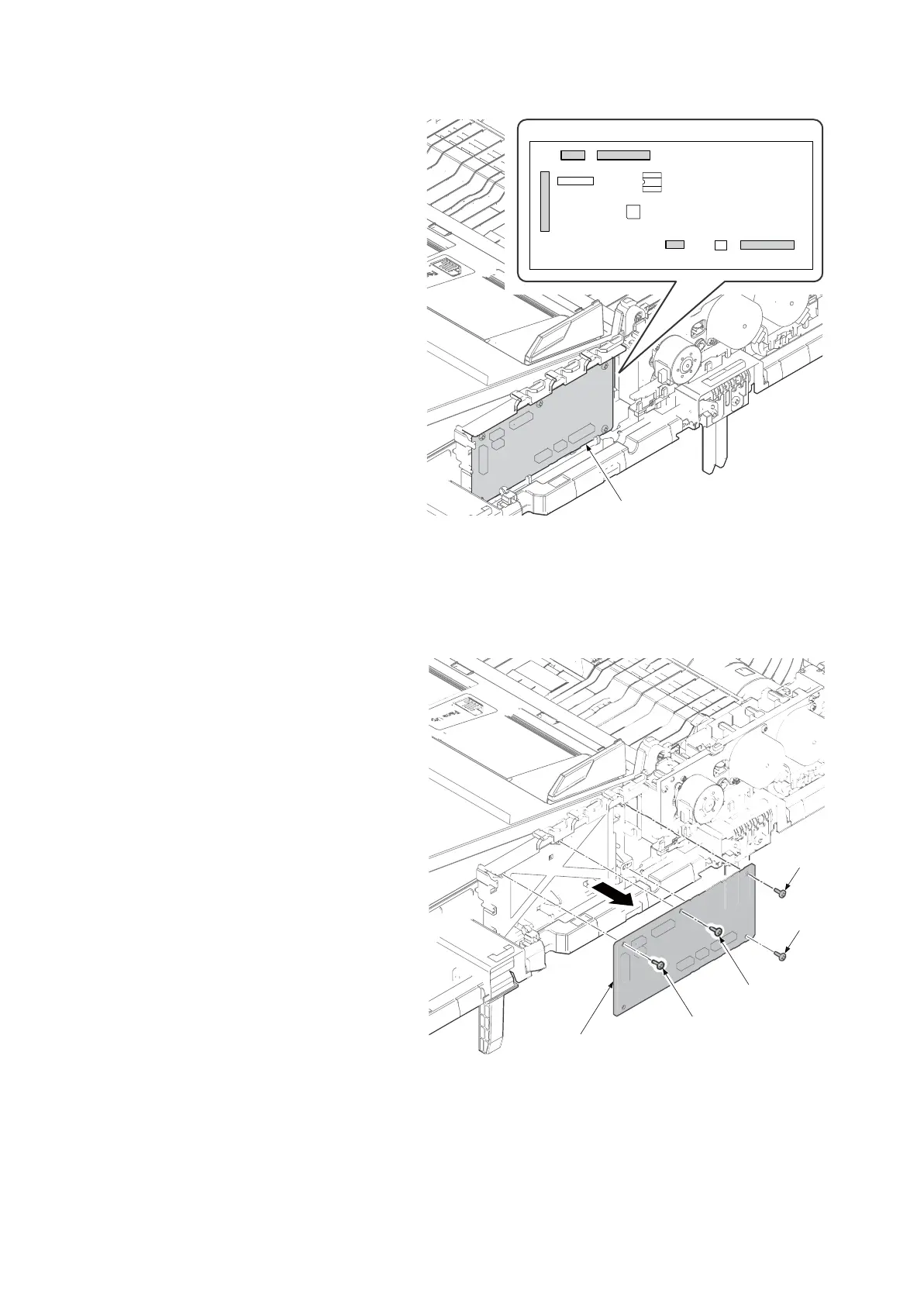

Figure 2-2-42
6. Remove four screws and then remove
the DP main PWB.
7. Check or replace the DP main PWB
and refit all the removed parts.
Figure 2-2-43
YC6
YC2
YC4
YS1
U1
YC3
YC7
11413
11871
1
16
DP main PWB connectors
DP main PWB
S
cre
w
S
cre
w
S
cre
w
S
cre
w
DP main PW
B
