Labrie expert 2000 - Page 54

44 CHAPTER 3
Maintenance

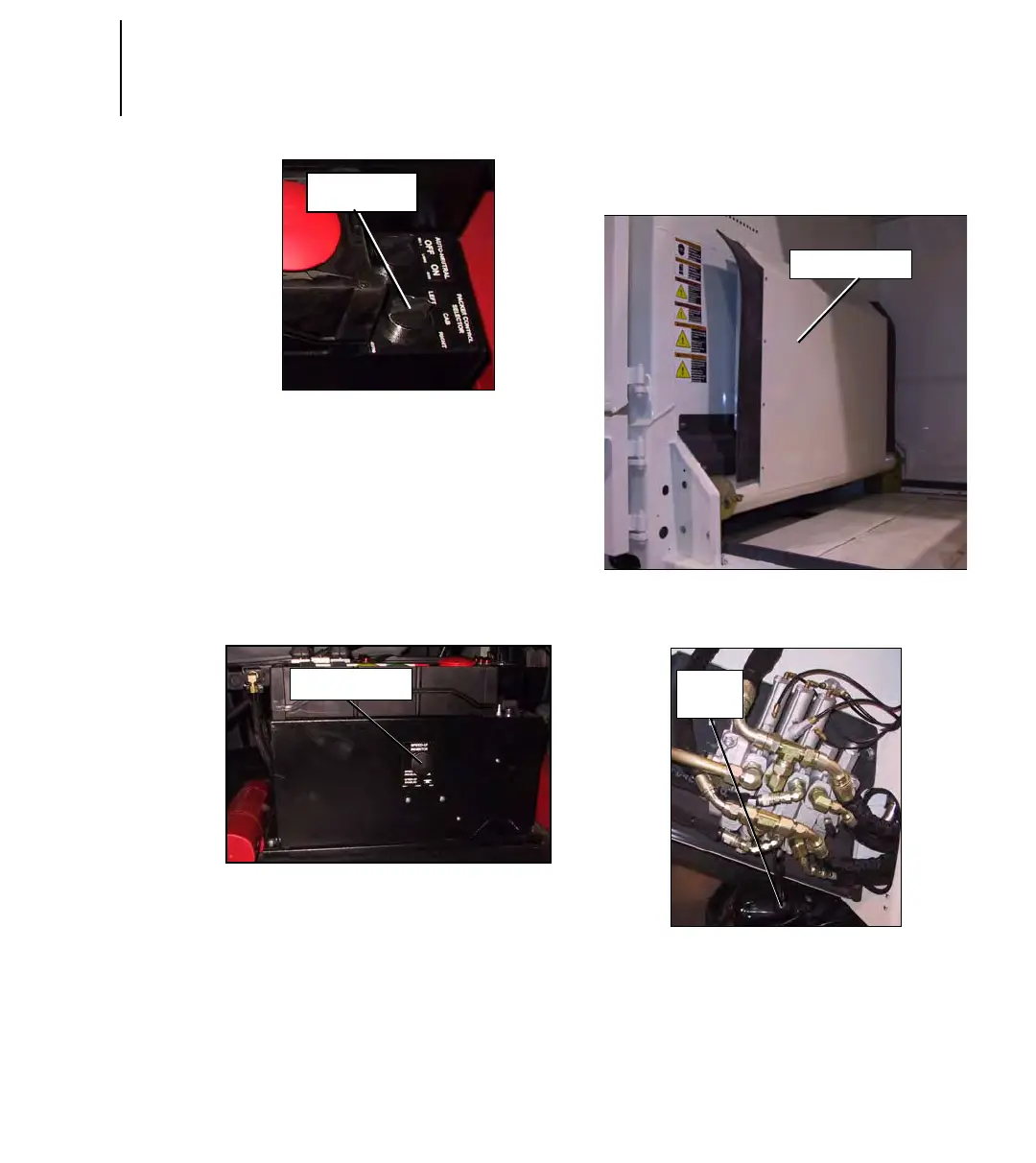

Figure 54. Packer control selector
switch
4. Disable the speed-up system on
the console (see Figure 55.
“Main console from right-hand
side driving position”) by pulling
out the
SPEED-UP INHIBITOR switch;
Figure 55. Main console from
right-hand side driving position
5. Raise the crusher panel (see
Figure 56. “Hopper”) using the
lever located on the main
hydraulic valve (see Figure 57.
“Crusher panel lever”);
Figure 56. Hopper
Figure 57. Crusher panel lever
6. Push the green
START CYCLE
button to fully extend the packer,
