45Expert(t) 2000
TM
Maintenance Manual
then push the red emergency
STOP button when the packer is
fully extended.

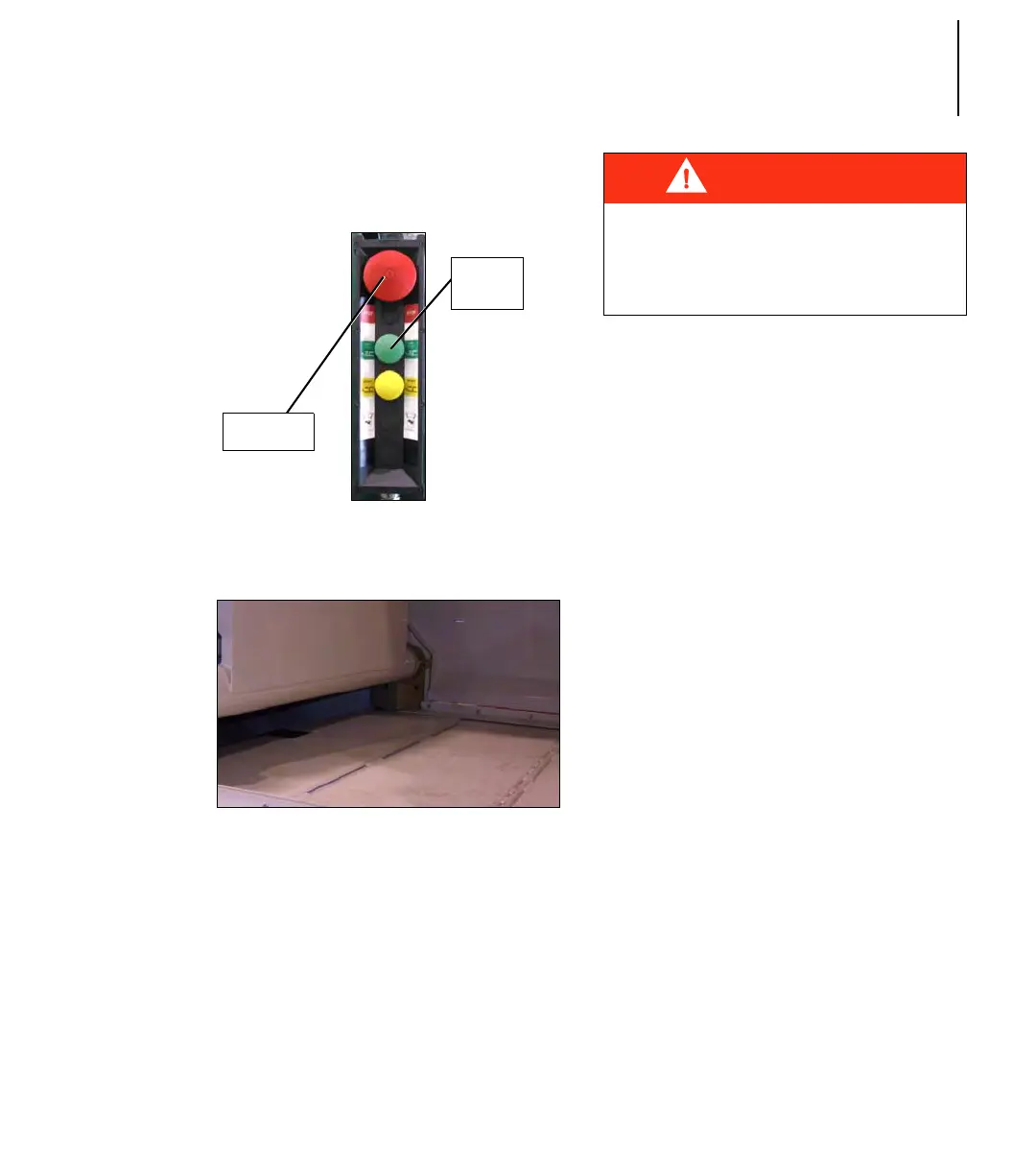

Figure 58. Right-hand side control
station
Figure 59. Extended packer
7. Apply the Lockout/Tagout
procedure. Refer to “Lockout/
Tagout Procedure” on page 8.
8. Check the follower panel hinges
and make sure there is no wear
on the panel surface;
9. Unbolt and remove the wear pad
bracket (Part #69584);
10. Inspect the nylon wear pad (see
Figure 61. “Extended packer”).
Note:This wear pad wipes out dirt
each time the packer goes
back and forth. If this wear
pad is less than 1-inch thick,
replace it with a new one.
11. Visually inspect both hopper side
rails and packer rollers (Figure
60. “Packer roller”) for premature
wear. See also “Packer Roller
Replacement” on page 70 and
“Wear Pads Replacement” on
page 57 for more details;
Emergency
Stop Button
Start
Cycle
Button
DANGER
APPLY THE LOCKOUT/TAGOUT
PROCEDURE
TO PREVENT ANY ENGINE
START
-UP.
