50 CHAPTER 3
Maintenance
multiple packer control
stations.

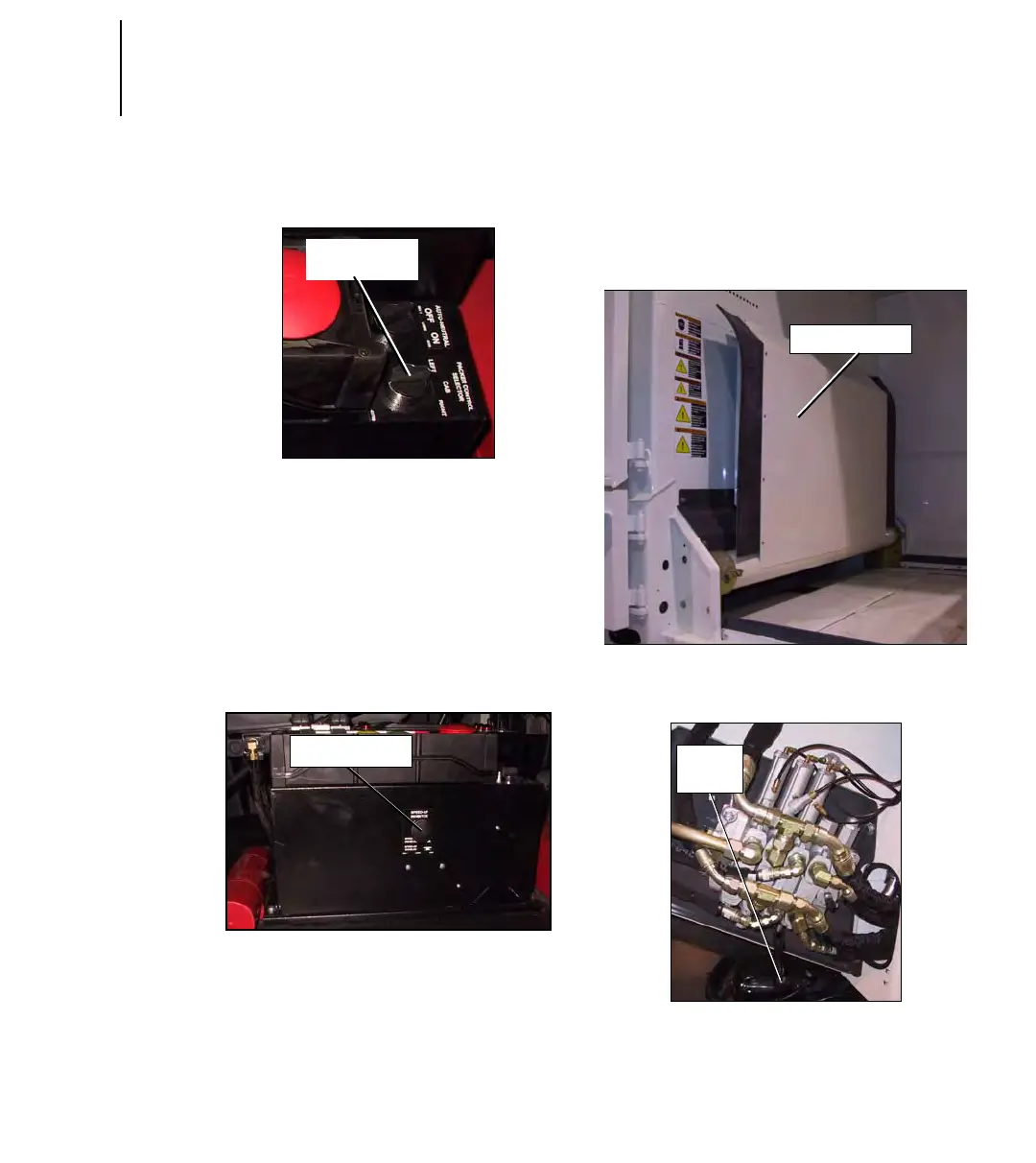

Figure 67. Packer control selector
switch
4. Disable the speed-up system on
the console (see Figure 41.
“Main console from right-hand
side driving position”) by pulling
out the
SPEED-UP INHIBITOR switch;
Figure 68. Main console from
right-hand side driving position
5. Raise the crusher panel (see
Figure 42. “Hopper”) using the
lever located on the main
hydraulic valve (see Figure 70.
“Crusher panel lever”);
Figure 69. Hopper
Figure 70. Crusher panel lever
Packer Control
Selector
Speed-Up
Inhibitor Switch
Crusher Panel
Crusher
Panel
Lever
